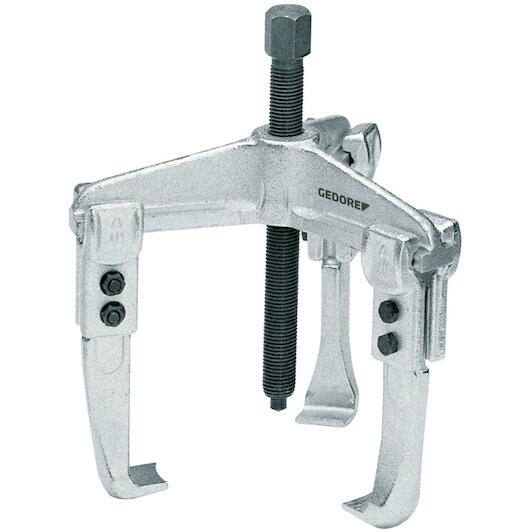

Product description
- Secure grip and centred pulling due to even load distribution on 3 hooks
- Strong, ergonomically shaped traverse
- Red-hot drop hook
- Towing hook with proven screw connection for a frictional connection
- Adjusting scale for even setting of the hooks
- Enables centric, force-optimised pull-off even at very high pull-off forces
- Nitrocarbonised spindle surface, wear-resistant and corrosion-proof
- Spindle remains smooth and clean - no need for greasing or oiling
- Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
- Interchangeable hooks for several spindle depths are available as accessories
Key features according to our expert
-
Max. width: 200 mm
-
Hydraulical: No
-
Max. height: 150 mm
-
Number of hooks: 3
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
43980029
-
EAN:
4036976103892
-
Supplier number:
GEDORE 8114240
- Max. width
- 200 mm
- Hydraulical
- No
- Max. height
- 150 mm
- Number of hooks
- 3
- Puller type
- Universel puller
- Clamping bracket available
- No
- Quick-release lever available
- No
- Hook foot thickness at end e1 [mm]
- 3.5 mm
- Reversible arms available
- No
- Hook foot depth usable d2 [mm]
- 18 mm
- Suitable for use with a hydraulic spindle
- Yes
- Hydraulic spindle optional
- 1.06/HSP1
- Screws included
- No
- Hook foot width on the gripping surface c1 [mm]
- 30 mm
- Number of arms
- 3
- Hooks parallel adjustable
- No
- Scale present
- No
- Drive hexagonal width
- 22m
- Anti-slip protection on the spindle available
- No
- Towing force (max.) [t]
- 5
- Spindle thread size
- G 1/2 x 210
- Hook brake available
- No
- Span for internal pull a2 (min.) [mm]
- 100 mm
- Span for internal pulling a2 (max.) [mm]
- 260 mm
- Span when pulled externally (max) [mm].
- 200 mm
- Spindle-slide protection
- No
- Clamping depth usable b [mm]
- 150 mm
