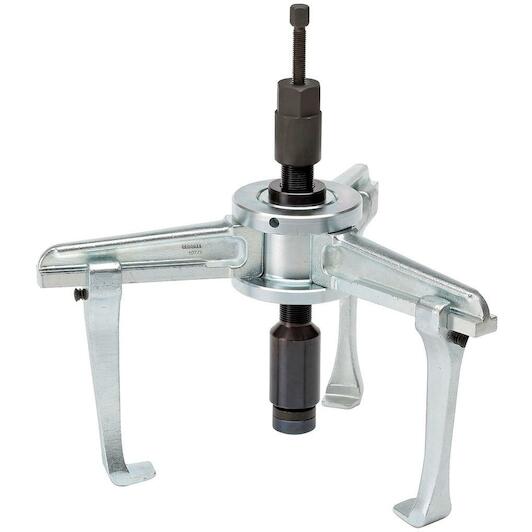

Product description
- Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
- Strong, ergonomically shaped traverse
- Hook red-hot fall extension
- All-steel hooks positively connected to the crossbeam
- With patented hook brake - quick adjustment and secure attachment of hooks, at the push of a button
- Can be used as an internal trigger by moving the hooks
- Hydraulic spindle with hardened surface, wear-resistant
- Spindle remains smooth and clean - no need for greasing or oiling
- Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
- Safety note Controlled removal is only guaranteed when using a torque spanner
Key features according to our expert
-
Max. width: 640 mm
-
Hydraulical: Yes
-
Max. height: 75 mm
-
Number of hooks: 3
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
02302284
-
EAN:
4010886944202
-
Supplier number:
GEDORE 2546582
- Max. width
- 640 mm
- Hydraulical
- Yes
- Max. height
- 75 mm
- Number of hooks
- 3
- Puller type
- Universel puller
- Clamping bracket available
- No
- Quick-release lever available
- No

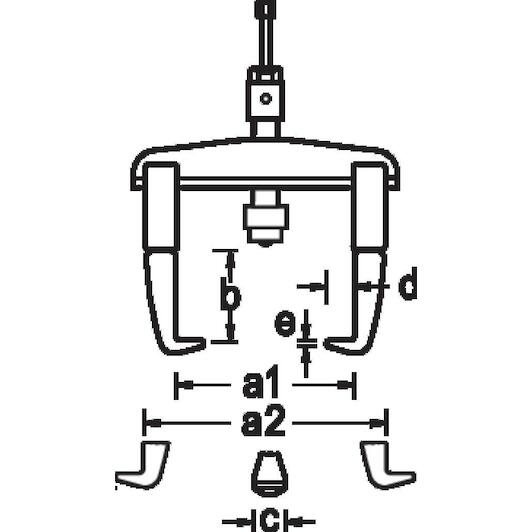

- Hook foot thickness at end e1 [mm]
- 6.5 mm
- Reversible arms available
- Yes
- Scale present
- No
- Hook foot depth usable d2 [mm]
- 28 mm
- Suitable for use with a hydraulic spindle
- No
- Screws included
- No
- Hydraulic spindle
- 1.06/HSP3
- Hook foot width on the gripping surface c1 [mm]
- 36 mm
- Hooks parallel adjustable
- No
- Overall length [mm]
- 137 mm
- Towing force (max.) [t]
- 10
- Anti-slip protection on the spindle available
- No
- Traction force (max.) [n].
- 25,0 N
- Span at external pull (min.) [mm].
- 150 mm
- Hook brake available
- Yes
- Span for internal pull a2 (min.) [mm]
- 270 mm
- Span for internal pulling a2 (max.) [mm]
- 640 mm
- Span when pulled externally (max) [mm].
- 580 mm
- Spindle-slide protection
- Yes
- Clamping depth usable b [mm]
- 140 mm
