GEDORE

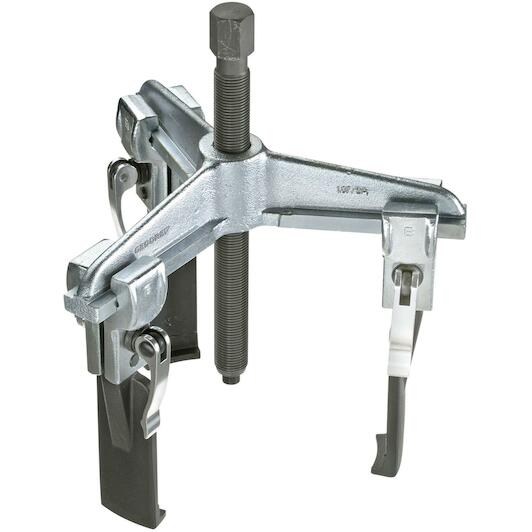

GEDORE 1.07/S2A-E universal quick release lever 3-armed with slim hooks 160x150 mm - 2016060

Recommended Retail Price €509.92
320.80 tax incl.
€265.12 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
  • Strong, ergonomically shaped traverse
  • Hook red-hot fall prevention
  • Self-supporting hooks with T-profile for dimensionally stable connection
  • Slim forged hook feet
  • Patented quick adjustment for easy, safe setting and adjustment - without using tools
  • Can be used as an internal trigger by moving the hooks
  • Nitrocarbonised spindle surface, wear and corrosion resistant
  • Spindle remains smooth and clean - no need for greasing or oiling
  • Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
Key features according to our expert
  • Max. width: 200 mm
  • Puller type: Universel puller
  • Number of hooks: 3
  • Hydraulical: No
  • Max. height: 150 mm
Specifications / All features
  • Brand: GEDORE
  • EAN: 4036976123623
  • Supplier number: GEDORE 2016060
Max. width
200 mm
Puller type
Universel puller
Number of hooks
3
Hydraulical
No
Max. height
150 mm
Hydraulic spindle optional
1.06/HSP1
Number of arms
3

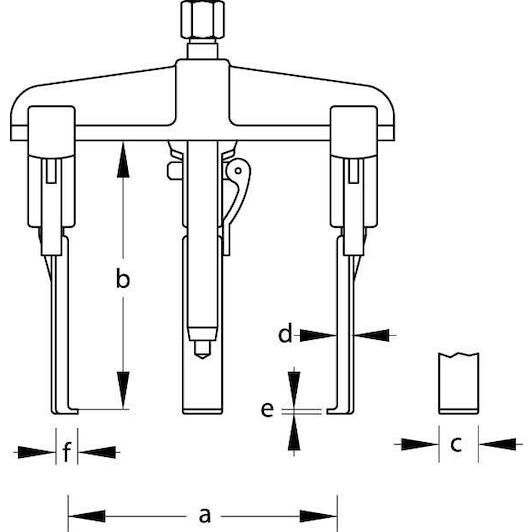

Hook foot width on the gripping surface c1 [mm]
40 mm
Screws included
No
Scale present
No
Suitable for use with a hydraulic spindle
No
Hook foot depth usable d2 [mm]
7 mm
Reversible arms available
No
Hook foot thickness at end e1 [mm]
5.0 mm
Quick-release lever available
Yes
Clamping bracket available
No
Hooks parallel adjustable
No
Drive hexagonal width
22 mm
Anti-slip protection on the spindle available
No
Towing force (max.) [t]
5
Spindle thread size
G 1/2 x 210
Hook brake available
No
Span when pulled externally (max) [mm].
200 mm
Total hook foot depth [mm]
15 mm
Spindle-slide protection
No
Clamping depth usable b [mm]
150 mm
