gedore_8005620
GEDORE

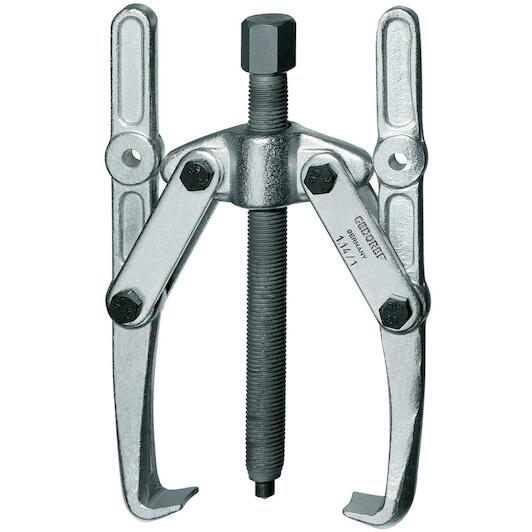

GEDORE 1.14/5 trigger 2-arm 420x480 mm - 8005620

Recommended Retail Price €360.05
219.20 tax incl.
€181.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Proven, particularly powerful design for pulling discs, wheels, ball bearings, etc.
  • Technical and economic advantages due to variable clamping depth and independent pulling of hooks
  • Particularly suitable for pulling V-belt pulleys and flywheel pulleys mounted on relatively long shafts
  • Suitable for use with a hydraulic spindle
Key features according to our expert
  • Max. width: 420 mm
  • Number of hooks: 2
  • Hydraulical: No
  • Max. height: 480 mm
Specifications / All features
  • Brand: GEDORE
  • EAN: 4036976104592
  • Supplier number: GEDORE 8005620
Max. width
420 mm
Number of hooks
2
Hydraulical
No
Max. height
480 mm
Double-sided hooks
No
Clamping bracket available
No
Hook foot thickness at end e1 [mm]
3.5 mm
Overall length [mm]
575 mm
Hook foot depth usable d2 [mm]
20 mm
Suitable for use with a hydraulic spindle
Yes
Hydraulic spindle optional
1.06/HSP1
Screws included
No
Hook foot width on the gripping surface c1 [mm]
32 mm
Number of arms
2
Reversible arms available
No
Drive hexagonal width
22 mm
Towing force (max.) [t]
8
Spindle thread size
G 1/2 x 350
Hook brake available
No
Span when pulled externally (max) [mm].
420 mm
Spindle-slide protection
No
Automatic pressing
Yes
Clamping depth usable b [mm]
480 mm
