GEDORE 1.18/1 trigger 2-arm 110x110 mm - 1464965

Show more features

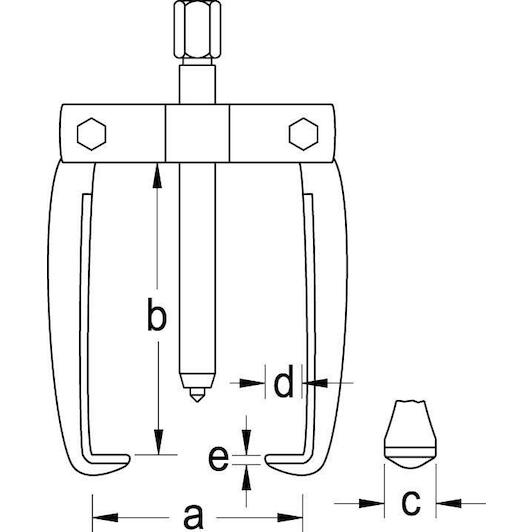

Max. width

110 mm

Number of hooks

2

Hydraulical

No

Max. height

110 mm

Reversible arms available

No

Clamping bracket available

No

Hook foot thickness at end e1 [mm]

5.0 mm

Hook foot depth usable d2 [mm]

18 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

17 mm

Number of arms

2

Spindle thread size

M 14x1.5 x 163

Towing force (max.) [t]

2

Drive hexagonal width

17 mm

Hook brake available

No

Span when pulled externally (max) [mm].

110 mm

Spindle-slide protection

No

Clamping depth usable b [mm]

110 mm
