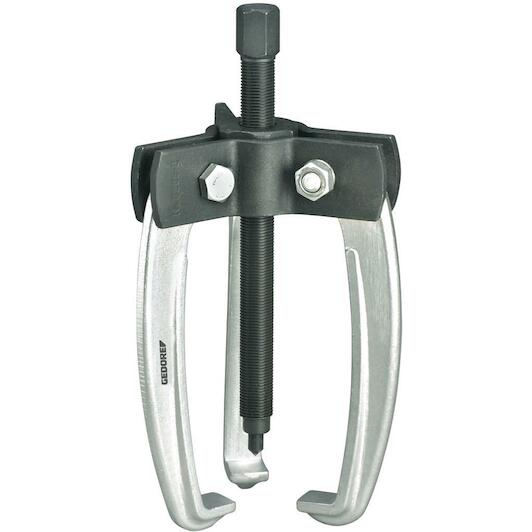

GEDORE 1.19/2 trigger 3-arm 160x140 mm - 1465015

Show more features

Max. width

160 mm

Number of hooks

3

Hydraulical

No

Max. height

140 mm

Towing force (max.) [t]

3

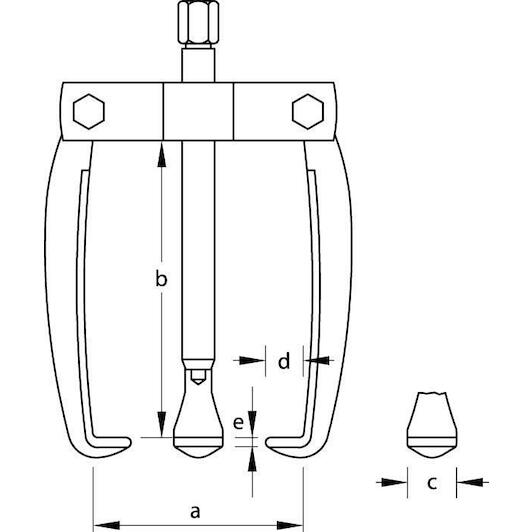

Hook foot thickness at end e1 [mm]

6.5 mm

Hook foot depth usable d2 [mm]

20 mm

Hook foot width on the gripping surface c1 [mm]

21 mm

Number of arms

3

Span when pulled externally (max) [mm].

160 mm

Drive hexagonal width

19 mm

Spindle thread size

M 18x1.5 x 215

Clamping depth usable b [mm]

140 mm
