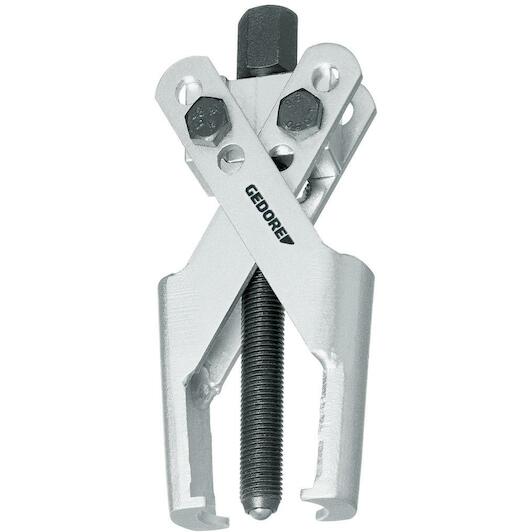

GEDORE 1.23/1 trigger 80x85 mm - 8084310

Show more features

Max. width

80 mm

Number of hooks

2

Hydraulical

No

Max. height

85 mm

Towing force (max.) [t]

2

Clamping bracket available

No

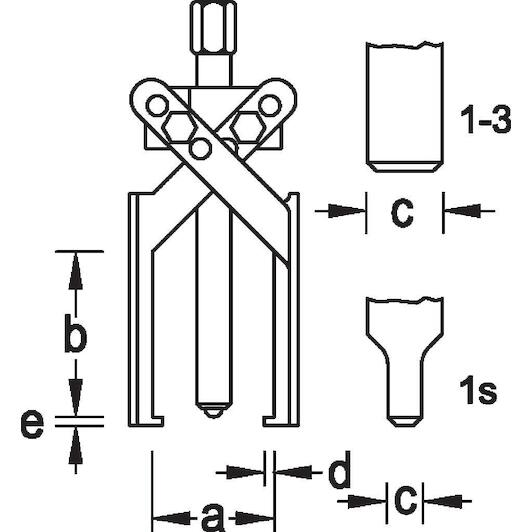

Hook foot thickness at end e1 [mm]

2.5 mm

Hook foot depth usable d2 [mm]

4 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

23 mm

Number of arms

2

Reversible arms available

No

Double-sided hooks

No

Spindle thread size

M 10 x 105

Drive hexagonal width

12 mm

Hook brake available

No

Span when pulled externally (max) [mm].

80 mm

Spindle-slide protection

No

Automatic pressing

Yes

Clamping depth usable b [mm]

85 mm
