Product description

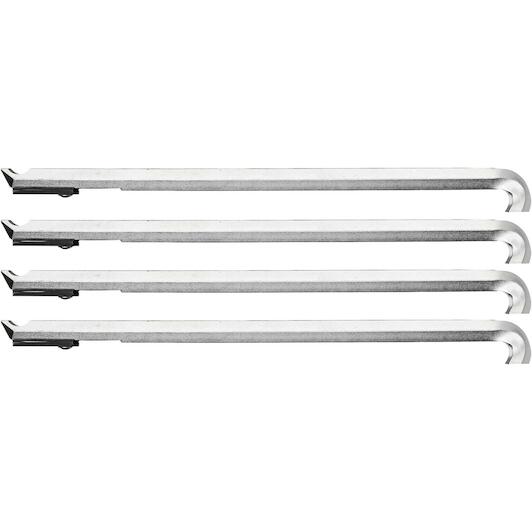

- 1.29/40 Tow bar set 4 pieces 226 mm with spacers
Supplier number:
GEDORE 8012240
|
EAN
4036976105209
Recommended Retail Price
€174.24
109.60
tax incl.
€90.58 excl. VAT (incl. all environmental contributions)
Effortless bearing removal with Gedore
Practical benefits- Deep reach for extraction: With a 226 mm length, you easily access deep-seated bearings and components without risking surface damage.
- Integrated stabilizing spacers: The included spacers allow you to align pulling arms securely, preventing slippage during demanding mechanical tasks.
- Complete four piece set: You get four matching pulling legs that ensure balanced load distribution across the entire extraction process.
In a nutshell
The right choise forWith the Gedore 1.29/40 pulling hook set, you remove deep-seated ball bearings safely without damaging shafts or machine housings. This four-piece set with a length of 235 mm and an effective reach of 226 mm provides the extended access needed for demanding maintenance and workshop jobs. The included spacers allow you to align the pulling legs firmly and without play in the bearing raceways. This ensures balanced force distribution across all four hooks, giving you full control and smooth extraction on tightly fitted bearings.
Product information
Key features according to our expert
- Length: 235 mm
All Features
- Length
- 235 mm
- Crochet foot length under head
- 197, 199 mm
- Rounding diameter [mm]
- 6 mm
- Distance inner radius rear edge bent [mm]
- 6.4 mm
- Hook foot length top of head [mm].
- 227 mm
- Distance from top edge of beam to tip of hook foot [mm].
- 13.1 mm
- Distance inner radius rear edge
- 6.4 - 8.9 mm
- For ball bearing pullers
- 1.29/31.29/4
- Crochet foot width
- 11.3 mm
- Total hook foot depth [mm]
- 10 mm
- For ball bearing no.
- 6306 6307 64046208 6209 6210 6307
- Overall length [mm]
- 237 mm
- Brand GEDORE
- EAN 4036976105209
- Supplier number GEDORE 8012240
Frequently asked questions about this product
Answered by specialists
- What is this pulling hook set used for?
- This hook set is designed for Gedore ball bearing extractors (such as the 1.29 series) to safely remove ball bearings.
- How many hooks are included in this set?
- The set includes 4 pulling hooks supplied with matching spacers.
- What is the length of these pulling hooks?
- The pulling hooks have a length of 235 mm (effective reach of 226 mm).
- What is the purpose of the included spacers?
- The spacers ensure stable and accurate alignment of the hooks during bearing extraction.
