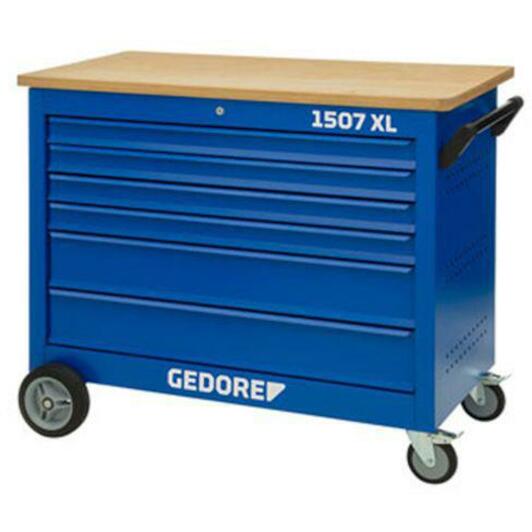

Product description
Carcase and worktop
- Dimensions H 985 x W 1200 x D 625 mm, 30 mm thick beech plywood worktop, surface additionally protected by linseed oil varnish
- Worktop clearance to rear enables flush parking against wall
- Side panels with euro perforation 10 x 38 mm for fixing hooks and tools
- Prepared to accept mounting set KL-5501-211 for mounting of spring tensioner KL-5501 B
- Safety thanks to heel protection for persons
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
- GEDORE blue
- Manoeuvrable and easy to steer thanks to drive-steer handle
Drawers
- One full-width drawer unit
- Centrally lockable using cylinder lock
- Wide drawers (W 998 x D 474 mm) with full extension, removable
- Individual pull-out stop, only one drawer can be opened at a time, one-hand operation
- Bearing-mounted guide rails
- Capacity per drawer 70 kg
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated
- GEDORE blue
Undercarriage and castors
- GEDORE heavy-duty undercarriage with total load capacity 700 kg, in mobile use 500 kg
- 2 high-quality, roller-bearing GEDORE castors (fixed-wheel castors Ø 200 mm)
- 2 smooth-running, ball-bearing GEDORE wheels (swivel castors Ø 125 mm), both with travel and swivel locks
- GEDORE trapezoidal axle construction ensures light running, manoeuvrable and track-resistant properties even at maximum load
Options
- Optimally equipped with GEDORE tool modules (1500 ES/1500 CT), up to 9 1/3 modules per drawer possible
- Supplied without tools and accessories
Key features according to our expert
-
Width: 985 mm
-
Height: 1200 mm
-
Number of drawers: 6
-
Material (worktop): Plywood
-
Color: Blue
-
Max. load capacity: 420 kg; 1000 kg
-
Weight: 134 kg
-
Depth: 625 mm
Specifications / All features
-
Brand:
GEDORE
-
02866527
-
EAN:
4010886952085
-
Supplier number:
GEDORE 3127834
- Width
- 985 mm
- Height
- 1200 mm
- Number of drawers
- 6
- Material (worktop)
- Plywood
- Color
- Blue
- Max. load capacity
- 420 kg; 1000 kg
- Weight
- 134 kg
- Depth
- 625 mm
- Fixed-wheel diameter (2x)
- 200
- Tray type
- 5x Type 1, H = 75 mm1x Type 5, H = 235 mm
- Number of wheels
- 4
- Individual withdrawal lock
- Yes
- Load capacity per drawer [kg]
- 70 kg
- Static load capacity [kg]
- 1000 kg
- Worktop thickness
- 30 mm
- Surface area
- powder-coated
- Swivel castor diameter with brakes (2x)
- 125
- Overall length [mm]
- 635 mm
- Worktop dimensions
- 1200 x 635 x 30 mm
- Colour
- GEDORE blue, RAL 5017
- Dynamic load capacity [kg]
- 750 kg
- Dimensions (l x w x h)
- 985 mm x 1,200 mm x 635 mm
- Material
- sheet steel
- Working height
- 985
