Product description
- Construction in accordance with DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Deep-grooved, with thin-walled rings
- Vanadium steel 31CrV3, chrome-plated
- Non-mirroring, matt surface
- Carefully forged and expertly machined Ring thin-walled, deeply swaged and angled at 5°, with UD profile - for gentle force transmission
- High bending rigidity - does not break or splinter under overload, minimising the risk of injury
- Overloading is indicated by deformation
- For extremely deep or countersunk bolts or nuts
- High industrial quality for continuous loading under severe conditions
Key features according to our expert
-
Ring spanner type: Double ring spanner
-
VDE approved: No
-
Drive profile size 1: 21 mm
-
Non-sparking: No
-
With safety colour code 1000V: Not applicable
-
Surface treatment: Matt chrome plated
-
Length: 307 mm
-
Type of drive profile 2: Twelve-point
-
Drive profile size 2: 24 mm
-
Type of drive profile 1: Twelve-point
Specifications / All features
-
Brand:
GEDORE
-
41890106
-
EAN:
4010886602584
-
Supplier number:
GEDORE 6025820
- Ring spanner type
- Double ring spanner
- Vde approved
- No
- Drive profile size 1
- 21 mm
- Non-sparking
- No
- With safety colour code 1000v
- Not applicable
- Surface treatment
- Matt chrome plated
- Length
- 307 mm
- Type of drive profile 2
- Twelve-point
- Drive profile size 2
- 24 mm
- Type of drive profile 1
- Twelve-point

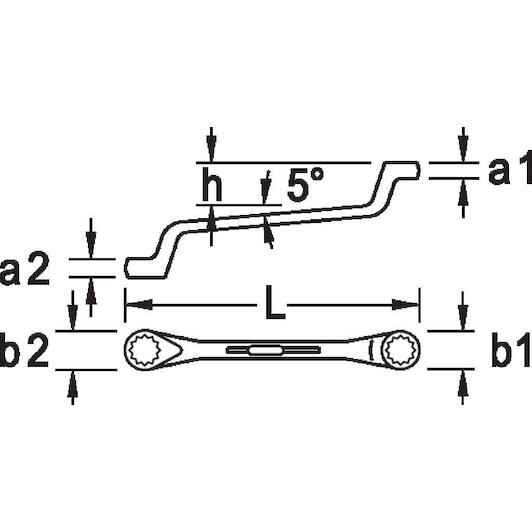

- Head width 2 [mm]
- 35.7 mm
- Overall length [mm]
- 320 mm
- Surface area
- chromed
- Head height 1 [mm]
- 13.4 mm
- Standard
- DIN 838ISO 3310 ISO 1085 ISO 10104
- Head width 1 [mm].
- 30.9 mm
- Key width 1 [mm]
- 21
- Crown heights 1
- 33 mm
- Head height 2 [mm]
- 14.4 mm
- Ring offset
- 5°
- Key width 2 [mm]
- 24
- Material
- 31CrV3
- Implementation
- Deeply swung, with thin-walled rings
- Key width [mm]
- 21x24
