What is the Gedore 2.40 puller set designed for?

It is designed for heavy-duty pulling tasks on agricultural and construction machinery.

Can you build both 2-arm and 3-arm pullers?

Yes, the included cross-beams allow assembly of both 2-arm and 3-arm configurations.

Does this set include a hydraulic spindle?

Yes, a 10 t hydraulic spindle (no. 1.06/HSP1) is included in the set.

Which puller leg lengths are included?

The set includes pulling legs with lengths of 210 mm, 260 mm, and 390 mm.

How many puller combinations can you assemble?

This modular system allows you to build up to 10 different puller configurations.

GEDORE 2.40 tractor set for (agricultural) construction machinery - 1393030

Name: GEDORE 2.40 tractor set for (agricultural) construction machinery - 1393030
Brand: GEDORE
SKU: 01041476
Price: 838.8 EUR
Availability: PreOrder

Supplier number: GEDORE 1393030 | EAN 4036976110234

Recommended Retail Price €1,476.15

838.80 tax incl.

€693.22 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

set

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Heavy-duty Gedore pulling set for machinery

Practical benefits

Versatile modular combinations: With interchangeable two- and three-arm crossbars, you assemble ten distinct puller variations to handle diverse disassembly tasks.
High hydraulic pulling force: The included 10 t hydraulic spindle allows you to remove tightly seated components smoothly without excessive manual effort.
Extended clamping reach: Featuring puller legs up to 390 mm long, you easily reach deep-seated bearings and gears in heavy machinery.

In a nutshell

The right choise for

With the Gedore 2.40 puller set, you remove seized components on agricultural and construction machinery quickly and safely. This modular component system lets you configure up to 10 different 2-arm and 3-arm puller setups. Thanks to the included 10 t hydraulic spindle, you effortlessly press off rusted gears, bearings, and pulleys without damaging shafts. Featuring pulling legs in lengths of 210 mm, 260 mm, and 390 mm, you easily reach deep-seated parts in the workshop or during on-site field repairs.

Product information FAQ

€838.80

tax incl.

Key features according to our expert

Scope of delivery

1 head 2-armed, no. 114/204 1 head 2-armed, no. 114/304 1 head 3-armed, no. 115/204 1 head 3-armed, no. 115/304 1 spindle 19 mm, M18x1.5, 200 mm, no. 1.1806200 1 spindle 22 mm, G 1/2", 250 mm, no. 1.2106250 1 hydraulic spindle 10 t, no. 1.06/HSP1 3 subtraction hooks 210 mm, no. 114/201 3 subtraction hooks 260 mm, no. 114/301 3 subtraction hooks 390 mm, no. 114/401 6 bracket, no. 114/208 12 bracket, no. 114/308

Product description

To assemble various models of the No. 1.14 and No. 1.15 series
With this set you can quickly assemble 10 tractors of the 1.14/1.15 series, incl. hydraulic spindle, yourself

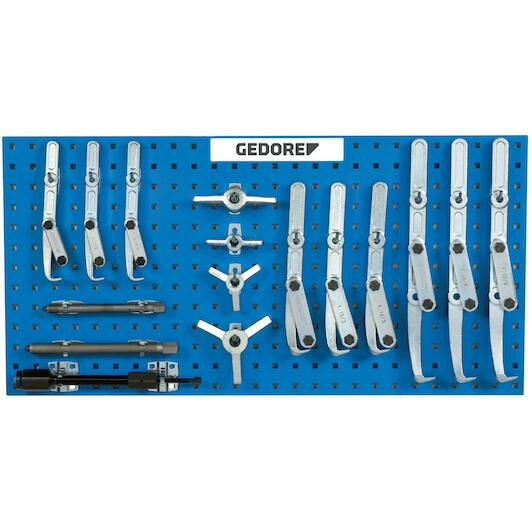

Always everything at hand on one tool wall

All Features

Reversible arms available: No
Quick-release lever available: No
Scale present: No
Suitable for use with a hydraulic spindle: No
Screws included: No
Hydraulic spindle: 1.06/HSP1
Hooks parallel adjustable: No
Anti-slip protection on the spindle available: No
Hook brake available: No
Spindle-slide protection: No
Spindle-point interchangeable: No
Implementation: including perforated wall panel
Clamping bracket available: No

Brand GEDORE
01041476
EAN 4036976110234
Supplier number GEDORE 1393030

Frequently asked questions about this product

Answered by specialists

What is the Gedore 2.40 puller set designed for?: It is designed for heavy-duty pulling tasks on agricultural and construction machinery.
Can you build both 2-arm and 3-arm pullers?: Yes, the included cross-beams allow assembly of both 2-arm and 3-arm configurations.
Does this set include a hydraulic spindle?: Yes, a 10 t hydraulic spindle (no. 1.06/HSP1) is included in the set.
Which puller leg lengths are included?: The set includes pulling legs with lengths of 210 mm, 260 mm, and 390 mm.
How many puller combinations can you assemble?: This modular system allows you to build up to 10 different puller configurations.
