Which nuts is this hook spanner designed for?

It is designed for cross-drilled nuts according to DIN 1816 with an outer diameter of 180 to 195 mm.

What are the dimensions of the pin?

The cylindrical pin has a diameter of 10 mm and a pin height of 8.0 mm.

What is the overall length of this hook wrench?

The total length is 465 mm, providing optimal leverage during use.

Which technical standards does this tool meet?

It complies with DIN 1810 Form B and is forged from GEDORE vanadium steel 31CRV3.

GEDORE 40 Z 180-195 hook spanner with pin 180-195 mm - 6338010

Name: GEDORE 40 Z 180-195 hook spanner with pin 180-195 mm - 6338010
Brand: GEDORE
SKU: 41893040
Price: 112.8 EUR
Availability: PreOrder

Supplier number: GEDORE 6338010 | EAN 4010886633809

Recommended Retail Price €189.10

112.80 tax incl.

€93.22 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Maximum leverage with Gedore

Practical benefits

Precise fit on nuts: The 10 mm pin securely engages cross-drilled nuts according to DIN 1816 sized 180 to 195 mm.
Extended high torque leverage: An overall length of 465 mm ensures you apply high tightening and loosening torque with minimal effort.
Tough vanadium steel build: Made from manganese-phosphated 31CrV3 vanadium steel, it resists wear and delivers long-term durability under heavy loads.

In a nutshell

The right choise for

Take control of heavy industrial fasteners with the Gedore 40 z 180-195 hook wrench with pin. Built in accordance with din 1810 Form B, it delivers a secure fit on cross-drilled nuts conforming to din 1816 sized 180 to 195 mm. The 10 mm cylindrical pin engages positively without slipping or damaging the nut surface. With an overall length of 465 mm, you gain ample leverage to loosen stubborn or heavily tightened components on machine shafts, spindles, and bearing mounts with minimal effort. Forged from manganese-phosphated Gedore vanadium steel 31CrV3, this tool provides the durability required for rigorous maintenance jobs.

Product information FAQ

€112.80

tax incl.

Key features according to our expert

Min. diameter: 180 mm
Max. diameter: 195 mm
Diameter (pin): 10 mm

Product description

Construction in accordance with DIN 1810 form B
For pinhole nuts according to DIN 1816
Vanadium steel 31CrV3, manganese phosphated

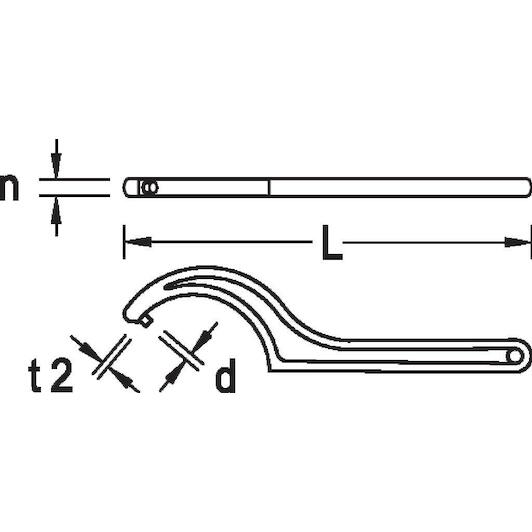

All Features

Min. diameter: 180 mm
Max. diameter: 195 mm
Diameter (pin): 10 mm
Material: Vanadium steel 31CrV3
Pin-height: 8.0 mm
Key width 1 [mm]: 180-195
Pin/ø: 10.0 mm
Head width 1 [mm].: 14.3 mm
Standard: DIN 1810 - Form B
Surface area: corpus manganese-phosphated
Overall length [mm]: 465 mm

Brand GEDORE
41893040
EAN 4010886633809
Supplier number GEDORE 6338010

Frequently asked questions about this product

Answered by specialists

Which nuts is this hook spanner designed for?: It is designed for cross-drilled nuts according to DIN 1816 with an outer diameter of 180 to 195 mm.
What are the dimensions of the pin?: The cylindrical pin has a diameter of 10 mm and a pin height of 8.0 mm.
What is the overall length of this hook wrench?: The total length is 465 mm, providing optimal leverage during use.
Which technical standards does this tool meet?: It complies with DIN 1810 Form B and is forged from GEDORE vanadium steel 31CRV3.
