Product description
- With equal key widths
- UD profile
- High power transmission
- Chrome vanadium steel 31CrV3
- Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
- Annealed forged
- Jaws ground to exact nominal size for optimum contact surfaces
- With adapter No. 7 RA or No. 7 RB (to be ordered separately), the No. 7 UR becomes a (bit) ratchet
- Ring side bent by 13°, switchable
- With spanner with ring ratchet No. 7 R for loosening the ratchet or quickly tightening the ratchet.
- Fits comfortably in the hand due to profiled profile in the shaft
- Torsion-resistant geometry with double-T profile
Key features according to our expert
-
Width across flats: 18 mm
-
Overall length: 227 mm
Specifications / All features
-
Brand:
GEDORE
-
41896175
-
EAN:
4010886889435
-
Supplier number:
GEDORE 2297353

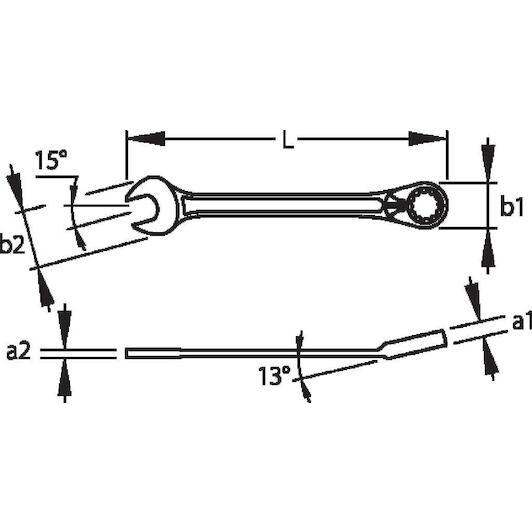

- Width across flats
- 18 mm
- Overall length
- 227 mm

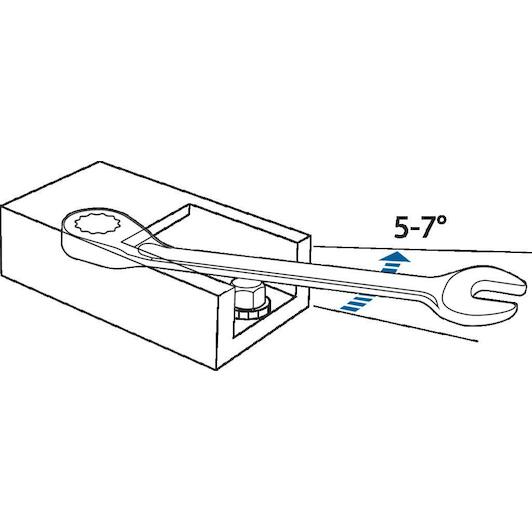

- Retrieval angle
- 6 °
- Overall length [mm]
- 240 mm
- Surface area
- chromed
- Head height 1 [mm]
- 11 mm
- Bekstand
- 15 °
- Standard
- non-standardized
- Head width 1 [mm].
- 34.6 mm
- Head height 2 [mm]
- 6.1 mm
- Head width 2 [mm]
- 40 mm
- Ring corner
- 13°
- Material
- 31CrV3
- Key width [mm]
- 18,0
