Work faster with the Gedore ratchet combination spanner

Practical benefits

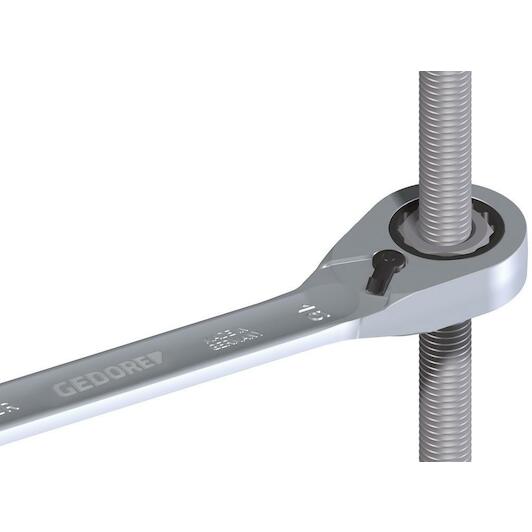

Instant direction change mechanism: The integrated reversing lever lets you switch rotation smoothly without taking the tool off the fastener.
Maximum torque and protection: The specialized UD profile prevents rounding of fastener heads while giving you powerful torque transfer.
Ergonomic and rigid grip: A torsion-resistant double T-girder hollow shaft provides you with exceptional comfort and strength during demanding tasks.

In a nutshell

The right choise for

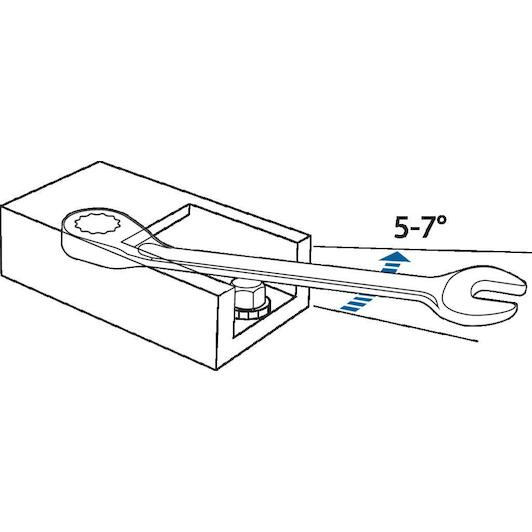

With the Gedore 7 ur 19 reversible ratchet combination spanner, you tighten and loosen 19 mm bolts and nuts with speed and precision. Featuring a fine ratcheting mechanism with a 6° working angle and a 13° offset ring end, it lets you work smoothly in confined spaces with limited clearance. The built-in switch lever allows you to alternate instantly between loosening and tightening without removing the tool from the fastener. The Unit-Drive ud profile prevents fastener damage while delivering maximum torque transfer, and the torsion-resistant double T-girder shaft gives you a secure, comfortable grip.

Product information FAQ

€30.80

In stock - tax incl.

Key features according to our expert

Width across flats: 19 mm
Overall length: 252 mm

Product description

With equal key widths
UD profile
High power transmission
Chrome vanadium steel 31CrV3
Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
Annealed forged
Jaws ground to exact nominal size for optimum contact surfaces
With adapter No. 7 RA or No. 7 RB (to be ordered separately), the No. 7 UR becomes a (bit) ratchet
Ring side bent by 13°, switchable
With spanner with ring ratchet No. 7 R for loosening the ratchet or quickly tightening the ratchet.
Fits comfortably in the hand due to profiled profile in the shaft
Torsion-resistant geometry with double-T profile

All Features

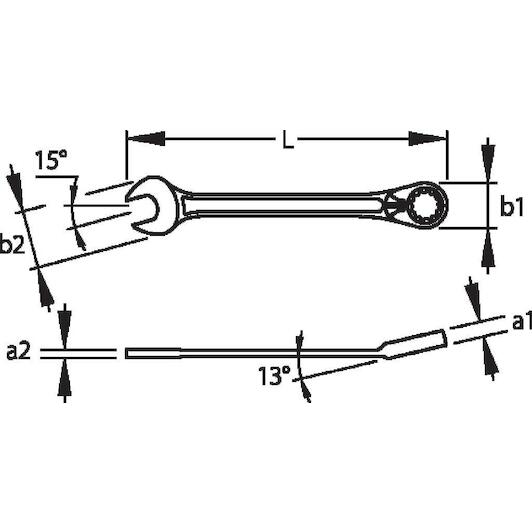

Width across flats: 19 mm
Overall length: 252 mm
Retrieval angle: 6 °
Overall length [mm]: 252 mm
Surface area: chromed
Head height 1 [mm]: 11.7 mm
Bekstand: 15 °
Standard: non-standardized
Head width 1 [mm].: 36.3 mm
Head height 2 [mm]: 6.4 mm
Head width 2 [mm]: 42 mm
Ring corner: 13°
Material: 31CrV3
Key width [mm]: 19,0

Brand GEDORE
41896176
EAN 4010886889466
Supplier number GEDORE 2297361

Frequently asked questions about this product

Answered by specialists

What is the size of this combination ratchet spanner?: This spanner has a 19 mm size on both the open-end and ring ends.
What is the benefit of the UD-profile?: The UD-profile provides optimal torque transfer and protects bolt heads from damage.
Can the ratcheting direction be switched?: Yes, it features a switch lever to easily alternate between loosening and tightening.
What is the working angle of the ratchet?: It has a small 6° working angle, making it suitable for work in tight spots.
Is the ring end angled?: Yes, the ring end is offset at 13° to provide clearance for your hands.
