GEDORE 7 XL 30 ring spanner extra long 30 mm - 6101780

Name: GEDORE 7 XL 30 ring spanner extra long 30 mm - 6101780
Brand: GEDORE
SKU: 41890428
Price: 46.4 EUR
Availability: InStock

Supplier number: GEDORE 6101780 | EAN 4010886610176

Recommended Retail Price €78.38

46.40 tax incl.

€38.35 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Maximum leverage with Gedore

Practical benefits

Extended reach and leverage: With a 480 mm overall length, you easily access deeply recessed fasteners and apply greater torque with minimal effort.
Superior bolt head protection: The 15° angled UD profile distributes force across the bolt flanks so you prevent rounding and damage to fasteners.
Resilient chrome vanadium steel: Forged from 31CrV3 steel with a matte chrome finish, it gives you high bending strength without splintering under load.

In a nutshell

The right choise for

With the Gedore 7 XL 30 combination spanner, you tackle tough fastening jobs and loosen stubborn 30 mm bolts with ease. Its extra-long 480 mm design gives you maximum leverage and effortlessly bridges the distance to deeply recessed fasteners where standard wrenches fall short. The 15° offset ring end features Gedore's ud profile, distributing torque evenly across the bolt flanks to prevent rounding and head damage. Forged from high-grade chrome-plated 31CrV3 steel, this spanner provides superior bending strength so you can work safely and confidently on commercial vehicles, agricultural machinery, and heavy industrial assemblies.

Product information FAQ

€46.40

In stock - tax incl.

Key features according to our expert

Width across flats: 30 mm
Length: 480 mm
Non-sparking: No

Product description

Extra long shank for deeper applications and more torque
Chrome-vanadium steel 31CrV3, chrome-plated
Carefully forged and expertly machined
Overload is indicated by deformation
Secure grip through profiled shank
Reflective appearance through matt chrome-plated surface
For universal applications
High industrial quality for continuous use under tough conditions
Jaw ground to exact nominal size for optimum contact surfaces
Ring angled 15°, with UD profile for gentle power transmission

All Features

Width across flats: 30 mm
Length: 480 mm
Non-sparking: No
Surface area: chromed

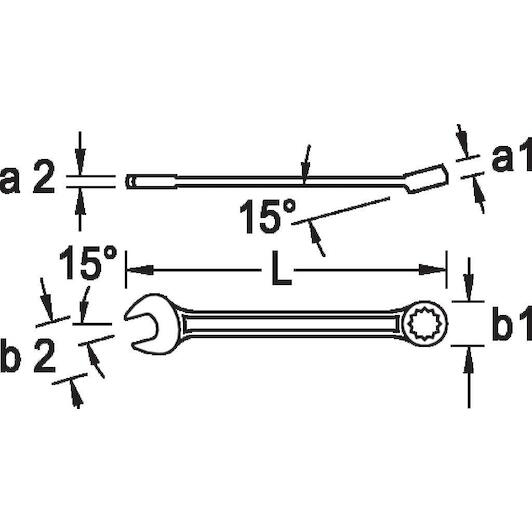

Head height 1 [mm]: 21.2 mm
Standard: similar to DIN 3113 - form AISO 3318 ISO 7738
Head width 1 [mm].: 44.5 mm
Key width 1 [mm]: 30
Head width 2 [mm]: 63 mm
Head height 2 [mm]: 14 mm
Ring corner: 15°
Weight lbs]: 1,850 lbs
Bekstand 1: 15°
Material: 31CrV3
Overall length [mm]: 478 mm

Brand GEDORE
41890428
EAN 4010886610176
Supplier number GEDORE 6101780

Frequently asked questions about this product

Answered by specialists

What is the total length of this combination spanner?: It measures 480 mm in length, providing extra leverage and reach for deep applications.
What advantage does the UD profile provide on the ring end?: The UD profile distributes torque evenly across bolt heads to prevent rounding or damage.
What is the size of both the open end and ring end?: Both the open jaw and the ring end have a size of 30 mm.
Is this spanner non-sparking?: No, this spanner is not non-sparking.
What happens when the spanner is overloaded?: It does not shatter or snap; overload is indicated through visible deformation.
