GEDORE 753-11 torque spanner DREMOMETER MINI 1/4" 2.5-12 Nm - 1957694

Name: GEDORE 753-11 torque spanner DREMOMETER MINI 1/4" 2.5-12 Nm - 1957694
Brand: GEDORE
SKU: 41986255
Price: 284.8 EUR
Availability: PreOrder
Rating: 7 (1 reviews)

1 review(s)

Recommended Retail Price €529.13

284.80 tax incl.

€235.37 excl. VAT (incl. all environmental contributions)

GEDORE 753-11 torque spanner DREMOMETER MINI 1/4" 2.5-12 Nm - 1957694

€284.80 Recommended Retail Price €529.13

On order: delivered from 21/05/2026

each

Ordered before 20:00 - delivered as of 21/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information
Reviews

Scope of delivery

Torque spanner type MINI,With test certificate according to DIN EN ISO 6789:2017 Type II, traceable to the national standard via the in-house DAkkS laboratory.

Product description

Application Controlled screw tightening in the range 2.5 - 12 Nm / 22.5 - 106 lbf-in
For use in almost all industrial (production) environments
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard.
Torque spanner with 1/4" drive square with ball lock DIN 3120 - A 6.3 as ISO 1174 for controlled clockwise tightening
Automatic switch-off with audible and tactile signal
Light plastic housing made of high-quality, fibreglass-reinforced polyamide with soft component on the handle
Double scale with 0.5 Nm and 5 lbf-in graduations
Additional micrometer scales for setting scale intermediate values, with Nm graduation of 0.05 Nm
Viewing window with magnifying glass effect
Safe locking of the set torque by pressing the setting button
Scope of delivery Torque spanner type MINI
With test certificate in accordance with DIN EN ISO 67892017 Type II, traceable to the national standard via the in-house DAkkS laboratory

Key features according to our expert

Min. tightening torque: 2,5 Nm
Drive profile size: 1/4"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Adjustable torque range: 2,5-12 Nm
Max. tightening torque: 12 Nm

Specifications / All features

Brand: GEDORE
41986255
EAN: 4002805929063
Supplier number: GEDORE 1957694

Min. tightening torque: 2,5 Nm
Drive profile size: 1/4"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Adjustable torque range: 2,5-12 Nm
Max. tightening torque: 12 Nm

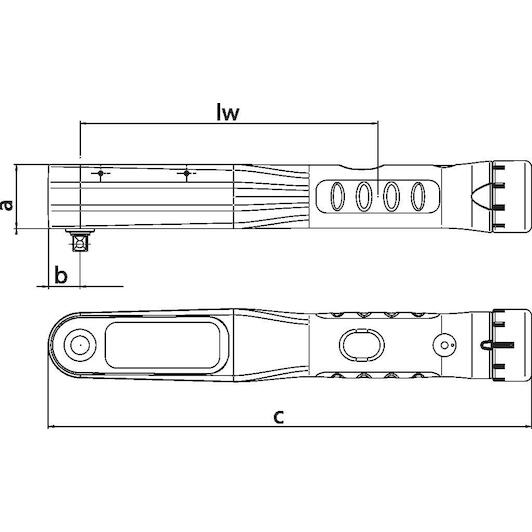

Head width 1 [mm].: 28.5 mm
Fixed setting: No
Drive type/drive: Single-sided square
Tightening range (min/max) [lbf-in].: 22.5 lbf-in - 106 lbf-in
Tightening torque (min.) [lbf-ft]: 22.5 lbf-ft
Tightening torque (max.) [lbf-in].: 106 lbf-in
Head height 1 [mm]: 28 mm
Test certificate: DIN EN ISO 6789-2:2017
Scale division [nm]: 5 Nm
Vernier nm: 0.05 Nm
Precision +/-: +/- 3 %
Tightening direction: Turn right
Overall length [mm]: 211 mm
Torque (min.) [nm].: 2.5 Nm
Scale [lbf-in]: 5 lbf-in
Tightening torque (min.) [lbf-in].: 22.5 lbf-in
Tightening range (min/max) [lbf-ft].: 22.5 lbf-ft - 106 lbf-ft
Scope: MountingSeries assembly Production Maintenance and repair
Material: fibreglass-reinforced high-tech polyamide
Torque range (min./max.) [nm].: 2.5 Nm - 12 Nm
Drive square [inch]: 1/4"
Drive square [metric]: 6.3 mm
Target groups: AutomotiveElectronics Industry Precision mechanics Military Energy Mechanical engineering Workshop Service Agriculture Construction switchboard
Turn-off mechanism: Short road clearance
Distance housing - square centre: 14.5 mm
Tightening torque (max) [lbf-ft]: 106 lbf-ft
Calibration length: 130 mm
Torque (max.) [nm].: 12 Nm
