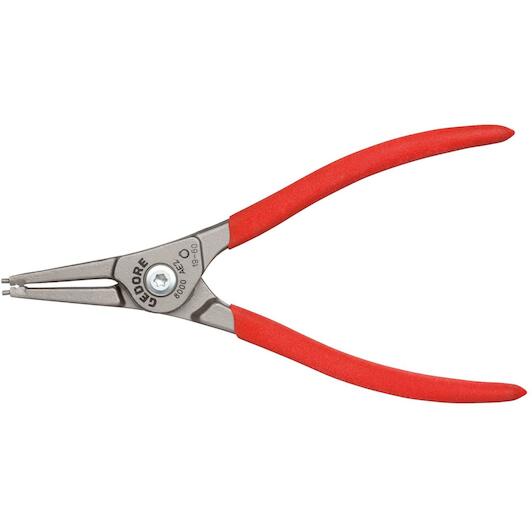

Product description
- For retaining rings according to
- DIN 471
- DIN 983
- Construction in accordance with DIN 5254 form A
- Straight points
- With internal opening spring
- Plier base made of GEDORE chrome vanadium special steel
- Impressed tips made of highly wear-resistant roller bearing steel
- Torsion damping tip geometry
- Screwed joint connection
- Steel grey, non-slip handles covered in red plastic
Key features according to our expert
-
For min. shaft diameter: 19 mm
-
Version: Straight
-
For max. shaft diameter: 60 mm
Specifications / All features
-
Brand:
GEDORE
-
02707988
-
EAN:
4010886946114
-
Supplier number:
GEDORE 2923602
- For min. shaft diameter
- 19 mm
- Version
- Straight
- For max. shaft diameter
- 60 mm
- Opening spring present
- Yes
- Overall length [mm]
- 185 mm
- Surface area
- steel-grey
- Standard
- DIN 5254 - form A
- Curing process
- oil-hardened and tempered
- Handle version
- dip-isolated
- Spark-free design
- Nein
- Point-ø
- 1.8 mm
- Joint types
- applied joint
- Shaft diameter [inch]
- 3/4-2.3/8
- Material
- Chrome-Vanadium steel
- Head length
- 57 mm
- Shaft diameter [mm]
- 19-60
