Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% required by the standard.

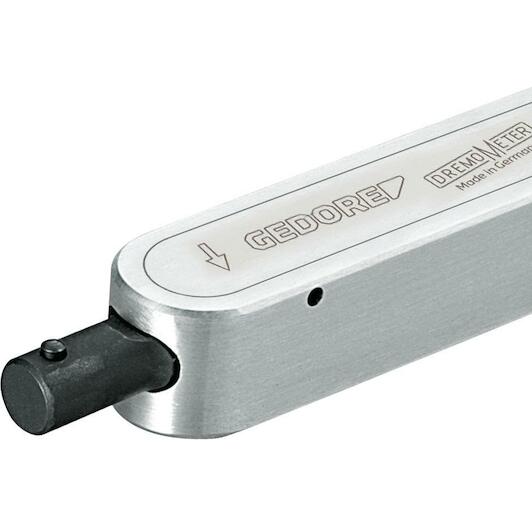

Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
Depending on tool use, work can be carried out either forwards (e.g. push-on spanner) or sideways (e.g. switchable ratchet and socket spanner)
Operation only in the middle of the handle - do not use an extension pipe, otherwise value shifts may occur (except for model DXZ - here the DREMOMETER is calibrated and adjusted with the extension pipe).
Operation is only possible with plug-in tools of uniform size - otherwise value shifts may occur
Note the gauge block on the certificate
Use only original GEDORE accessories
Large diameter of the pin's toolholder transmits large torques
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient adjustment using an attractively designed, captive adjustment knob at the end of the handle
With test certificate in accordance with DIN EN ISO 6789-22017, traceable to the national standard via the in-house DAkkS laboratory

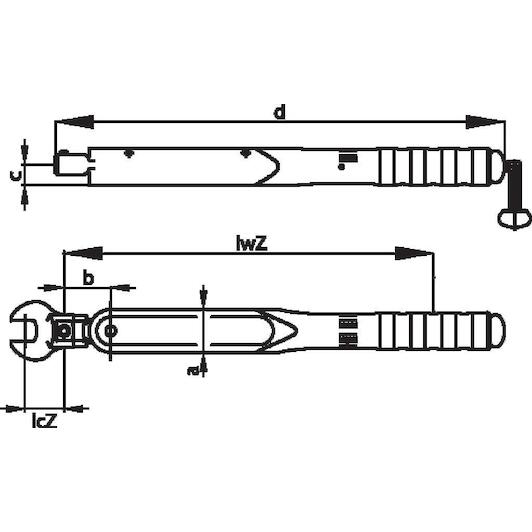

Distance between the housing and the centre of the drive [mm].
16 mm
Precision +/-
+/- 3 %
Tightening direction
Left and right
Overall length [mm]
645 mm
Torque (min.) [nm].
80 Nm
Tightening range (min/max) [lbf-ft].
60 lbf-ft - 300 lbf-ft
Tightening torque (max) [lbf-ft]
300 lbf-ft
Lever length handle side [mm]
607 mm
Material
Aluminium alloy
Scale
5
Scope
MountingSeries assembly Production Maintenance and repair
Take-up width [mm]
16 mm
Torque range (min./max.) [nm].
80 Nm - 400 Nm
Type of torque spanner
CZ
Target groups
AutomotiveIndustry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Railway Agriculture Oil and gas
