GEDORE 8463-10 torque spanner dremometer dz 22z 140-620 nm - 7703020

Name: GEDORE 8463-10 torque spanner dremometer dz 22z 140-620 nm - 7703020
Brand: GEDORE
SKU: 41150518
Price: 1117.8 EUR
Availability: PreOrder

Supplier number: GEDORE 7703020 | EAN 4002805846315

Recommended Retail Price €1,925.91

1,117.80 tax incl.

€923.80 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information

€1,117.80

tax incl.

Key features according to our expert

Max. tightening torque: 620 Nm
Drive profile size: 22 mm
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Overall length: 846 mm
Min. tightening torque: 140 Nm

Product description

Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% required by the standard.
Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
Depending on tool use, work can be carried out either forwards (e.g. push-on spanner) or sideways (e.g. switchable ratchet and socket spanner)
Operation only in the middle of the handle - do not use an extension pipe, otherwise value shifts may occur (except for model DXZ - here the DREMOMETER is calibrated and adjusted with the extension pipe).
Operation is only possible with plug-in tools of uniform size - otherwise value shifts may occur
Note the gauge block on the certificate
Use only original GEDORE accessories

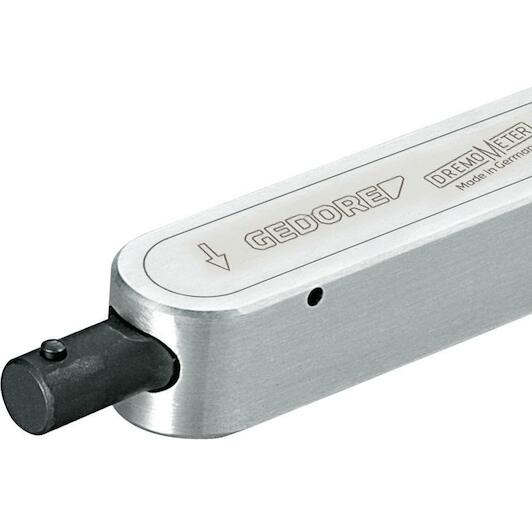

Large diameter of the pin's toolholder transmits large torques
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient setting using an attractively designed, captive adjustment knob at the end of the handle
With test certificate according to DIN EN ISO 6789-22017, traceable to the national standard via the in-house DAkkS laboratory

All Features

Max. tightening torque: 620 Nm
Drive profile size: 22 mm
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue

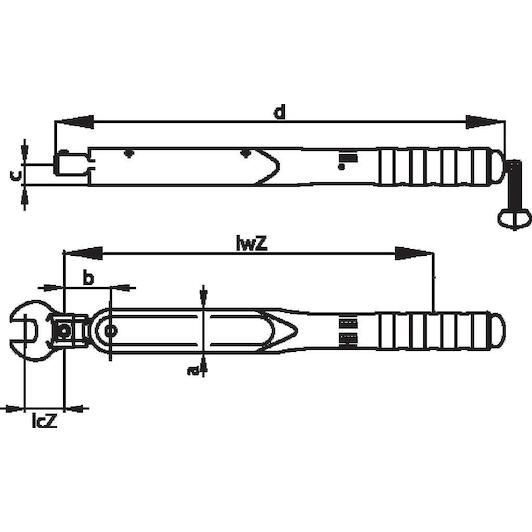

Overall length: 846 mm
Min. tightening torque: 140 Nm
Pitch size [metric]: 45.0 mm
Fixed setting: No
Drive type/drive: Drive pin
Tightening torque (min.) [lbf-ft]: 100 lbf-ft
Head width 1 [mm].: 45.0 mm
Lever length drive side [mm]: 49 mm
Precision +/-: +/- 3 %
Test certificate: DIN EN ISO 6789-2:2017
Scale division [nm]: 10 Nm
Head height 1 [mm]: 35 mm
Distance between the housing and the centre of the drive [mm].: 18 mm
Tightening direction: Left and right
Overall length [mm]: 846 mm
Torque (min.) [nm].: 140 Nm
Tightening range (min/max) [lbf-ft].: 100 lbf-ft - 450 lbf-ft
Turn-off mechanism: Short road clearance
Lever length handle side [mm]: 597 mm
Material: Aluminium alloy
Scale: 10
Scope: MountingSeries assembly Production Maintenance and repair
Take-up width [mm]: 22 mm
Torque range (min./max.) [nm].: 140 Nm - 620 Nm
Type of torque spanner: DZ
Target groups: AutomotiveIndustry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Railway Agriculture Oil and gas
Scale division [lbf-ft]: 10 lbf-ft
Tightening torque (max) [lbf-ft]: 450 lbf-ft
Calibration length: 767.5 mm
Torque (max.) [nm].: 620 Nm
