What is the adjustable torque range of this torque wrench?

The adjustable torque range is 8 to 40 Nm (70 to 350 lbf·in), visible on an analogue dual scale.

What drive size does the Gedore 8560-01 use?

It features a fixed 3/8" (10 mm) square drive with a ball locking mechanism.

How does the torque wrench signal that the preset torque is reached?

It features automatic short-path actuation with both a tactile pulse and an audible click signal.

Does hand placement on the wrench affect torque accuracy?

No, the square drive and pivot point are on the same axis, maintaining accuracy even outside the handle or when using two hands.

Is this tool insulated for live electrical work (VDE)?

No, this torque wrench is not VDE certified and is not suitable for live electrical applications.

GEDORE 8560-01 torque spanner dremometer a 3/8" 8-40 Nm - 7682000

Name: GEDORE 8560-01 torque spanner dremometer a 3/8" 8-40 Nm - 7682000
Brand: GEDORE
SKU: 41150456
Price: 404.8 EUR
Availability: PreOrder

Supplier number: GEDORE 7682000 | EAN 4002805856017

Recommended Retail Price €706.86

404.80 tax incl.

€334.55 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate and controlled tightening with Gedore

Practical benefits

Clear tactile and audible click: You instantly feel and hear a mechanical pulse as soon as the target torque is reached.
Uncompromising working accuracy: You maintain precise torque values regardless of where you grip the handle during operation.
Lightweight yet durable body: You rely on a robust aluminum alloy housing that easily withstands continuous workshop use.

In a nutshell

The right choise for

With the Gedore 8560-01 Dremometer a torque wrench, you achieve controlled and accurate tightening on every job. Covering a torque range of 8 to 40 Nm (70 to 350 lbf·in), it is the ideal tool for light automotive assembly, motorcycle maintenance, and bicycle repairs. The fixed 3/8" square drive and single-axis pivot design ensure precise torque transfer, even if you change your grip or use both hands. a distinct tactile pulse and audible click notify you immediately once the target torque is reached. Its lightweight yet durable aluminium alloy body delivers dependable performance during demanding daily workshop tasks.

Product information FAQ

€404.80

tax incl.

Key features according to our expert

Max. tightening torque: 40 Nm
Drive profile size: 3/8"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 8 Nm

Product description

Application Controlled screw tightening in the range 8 - 40 Nm / 70 - 350 lbf-in
For use in almost all industrial (production) environments
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 3/8" drive square with ball lock DIN 3120 - A 10
ISO 1174
Automatic stop with tactile and audible signal
Double scale with 5 Nm and 50 lbf-in graduations
Technical advantages/function Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
No shifting of set values and therefore no impact on accuracy by working with both hands or outside the handle (as with conventional torque spanners).
Both the drive square and the pivot point are on one shaft, so lengthening the spanner does not affect the tightening value.
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient adjustment using an attractively designed, captive adjustment knob on the handle end
Single or double drive square for controlled clockwise and/or anticlockwise tightening

All Features

Max. tightening torque: 40 Nm
Drive profile size: 3/8"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 8 Nm
Standard: DIN 3120 - A 10ISO 1174
Fixed setting: No
Drive type/drive: Single-sided square
Tightening range (min/max) [lbf-in].: 70 lbf-in - 350 lbf-in
Tightening torque (max.) [lbf-in].: 350 lbf-in

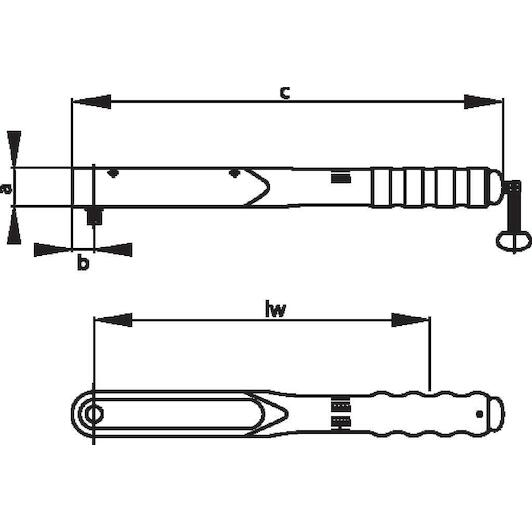

Head width 1 [mm].: 35.0 mm
Precision +/-: +/- 3 %
Scale division [nm]: 5 Nm
Head height 1 [mm]: 30 mm
Storage/contents: Plastic box
Tightening direction: Turn right
Overall length [mm]: 338 mm
Torque (min.) [nm].: 8 Nm
Scale [lbf-in]: 50 lbf-in
Distance housing - square centre: 17.5 mm
Drive square [inch]: 3/8"
Calibration length: 262 mm
Tightening torque (min.) [lbf-in].: 70 lbf-in
Turn-off mechanism: Short road clearance
Target groups: AutomotiveElectronics Industry Precision mechanics Military Energy Mechanical engineering Workshop Service Agriculture Construction switchboard
Drive square [metric]: 10 mm
Type of torque spanner: A
Torque range (min./max.) [nm].: 8 Nm - 40 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: Aluminium alloy
Torque (max.) [nm].: 40 Nm

Brand GEDORE
41150456
EAN 4002805856017
Supplier number GEDORE 7682000

Frequently asked questions about this product

Answered by specialists

What is the adjustable torque range of this torque wrench?: The adjustable torque range is 8 to 40 Nm (70 to 350 lbf·in), visible on an analogue dual scale.
What drive size does the Gedore 8560-01 use?: It features a fixed 3/8" (10 mm) square drive with a ball locking mechanism.
How does the torque wrench signal that the preset torque is reached?: It features automatic short-path actuation with both a tactile pulse and an audible click signal.
Does hand placement on the wrench affect torque accuracy?: No, the square drive and pivot point are on the same axis, maintaining accuracy even outside the handle or when using two hands.
Is this tool insulated for live electrical work (VDE)?: No, this torque wrench is not VDE certified and is not suitable for live electrical applications.
