What is the torque range of this torque wrench?

The torque setting ranges from 155 to 760 Nm (115 to 560 lbf·ft) with scale increments of 10 Nm.

What drive size does the Gedore 8568-10 use?

It features a 3/4" (20 mm) double square drive with pin-locking retention.

How does the tool indicate when the set torque is reached?

The wrench provides short-path actuation with a noticeable tactile impulse and an audible click.

Does hand position affect torque accuracy?

No, the pivot design ensures accurate release regardless of where you grip the tool or if an extension is used.

Is this torque wrench VDE-rated for electrical work?

No, this torque wrench is not VDE-certified or insulated for live electrical applications.

GEDORE 8568-10 torque spanner dremometer dl 3/4" 155-760 Nm - 7691850

Name: GEDORE 8568-10 torque spanner dremometer dl 3/4" 155-760 Nm - 7691850
Brand: GEDORE
SKU: 41150404
Price: 1224.8 EUR
Availability: PreOrder

Supplier number: GEDORE 7691850 | EAN 4002805856819

Recommended Retail Price €1,965.31

1,224.80 tax incl.

€1,012.23 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise controlled tightening with Gedore

Practical benefits

Clear tactile and audible release: You feel a distinct impulse and hear a clear click when reaching the set torque, preventing overtightening of fasteners.
Lightweight robust aluminium housing: You benefit from a durable aluminium alloy body that withstands tough workshop environments while remaining easy to handle.
Wide high torque range: With an adjustable range of 155-760 Nm and a 3/4" drive, you reliably secure heavy-duty industrial bolted connections.

In a nutshell

The right choise for

With the Gedore 8568-10 Dremometer DL torque wrench, you secure heavy bolted connections with complete precision and confidence. Featuring an adjustable range of 155 to 760 Nm and a solid 3/4" drive with pin locking, it is engineered for heavy vehicle maintenance, plant servicing, and industrial machinery assembly. The unique lever mechanism guarantees consistent torque accuracy regardless of where you grip the handle. When the set torque is reached, the tool signals immediately with a distinct tactile impulse and an audible click to prevent over-tightening. Its durable, lightweight aluminium alloy housing delivers effortless handling during tough workshop jobs.

Product information FAQ

€1,224.80

tax incl.

Key features according to our expert

Max. tightening torque: 760 Nm
Drive profile size: 3/4"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 155 Nm

Product description

Application Controlled screw tightening in the range 155 - 760 Nm / 115 - 560 lbf-ft
For use in almost all industrial (production) environments
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 3/4" drive square with pin lock DIN 3120 - B 20
ISO 1174
Automatic stop with tactile and audible signal
Double scale with 10 Nm and 10 lbf-ft graduations
Technical advantages/function Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
No shifting of set values and therefore no impact on accuracy by working with both hands or outside the handle (as with conventional torque spanners)
Both the drive square and the pivot point are on one shaft, so lengthening the spanner does not affect the tightening value
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient adjustment using an attractively designed, captive adjustment knob on the handle end
Single or double drive square for controlled clockwise and/or anticlockwise tightening

All Features

Max. tightening torque: 760 Nm
Drive profile size: 3/4"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 155 Nm
Standard: DIN 3120 - B 20ISO 1174
Fixed setting: No

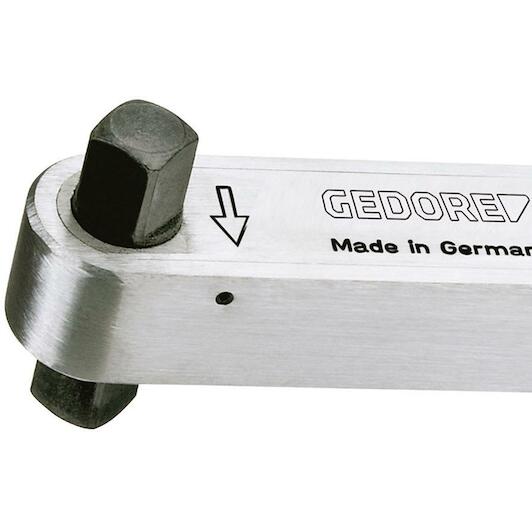

Drive type/drive: Double square
Tightening torque (min.) [lbf-ft]: 115 lbf-ft
Head width 1 [mm].: 45.0 mm
Storage/contents: Plastic box
Test certificate: DIN EN ISO 6789-2:2017
Head height 1 [mm]: 35 mm
Precision +/-: +/- 3 %
Drive square [inch]: 3/4"
Tightening direction: Left and right

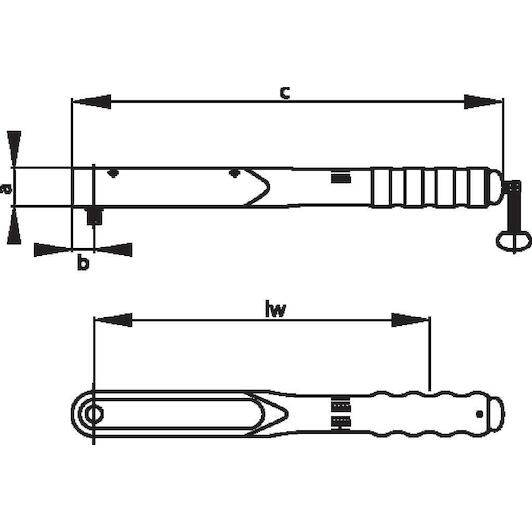

Overall length [mm]: 812 mm
Torque (min.) [nm].: 155 Nm
Tightening range (min/max) [lbf-ft].: 115 lbf-ft - 560 lbf-ft
Turn-off mechanism: Short road clearance
Calibration length: 719 mm
Tightening torque (max) [lbf-ft]: 560 lbf-ft
Distance housing - square centre: 22.5 mm
Scale division [lbf-ft]: 10 lbf-ft
Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil and gas
Drive square [metric]: 20 mm
Torque range (min./max.) [nm].: 155 Nm - 760 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: Aluminium alloy
Torque (max.) [nm].: 760 Nm

Brand GEDORE
41150404
EAN 4002805856819
Supplier number GEDORE 7691850

Frequently asked questions about this product

Answered by specialists

What is the torque range of this torque wrench?: The torque setting ranges from 155 to 760 Nm (115 to 560 lbf·ft) with scale increments of 10 Nm.
What drive size does the Gedore 8568-10 use?: It features a 3/4" (20 mm) double square drive with pin-locking retention.
How does the tool indicate when the set torque is reached?: The wrench provides short-path actuation with a noticeable tactile impulse and an audible click.
Does hand position affect torque accuracy?: No, the pivot design ensures accurate release regardless of where you grip the tool or if an extension is used.
Is this torque wrench VDE-rated for electrical work?: No, this torque wrench is not VDE-certified or insulated for live electrical applications.
