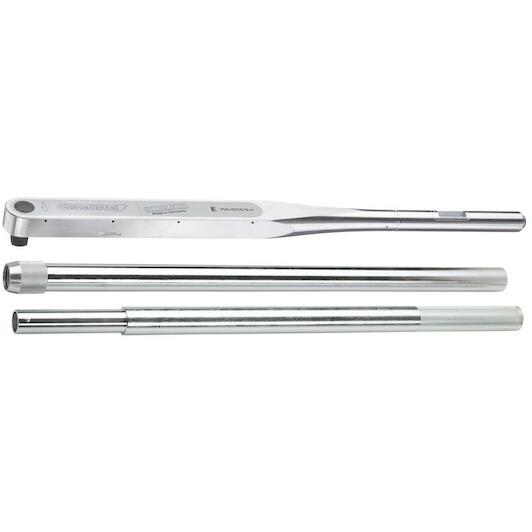

Application Controlled screw connections in the range 750 - 2000 Nm
For use in almost all industrial (production) environments
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 1" drive square with pin lock DIN 3120 - B 25
ISO 1174
Automatic stop with tactile and audible signal
Single scale with 50 Nm graduation
Technical advantages/function Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
No shifting of set values and therefore no influence on accuracy by working with both hands or outside the handle (as with conventional torque spanners).
Both the drive square and the pivot point are on one shaft, so lengthening the spanner does not affect the tightening value.
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient adjustment using an attractively designed, captive adjustment knob on the handle end

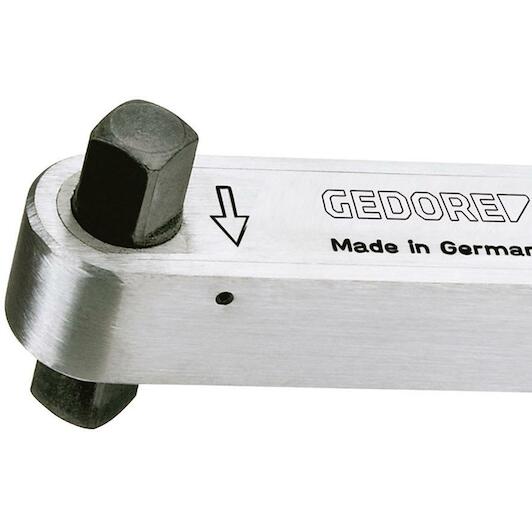

Single or double drive square for controlled clockwise and/or anticlockwise tightening
