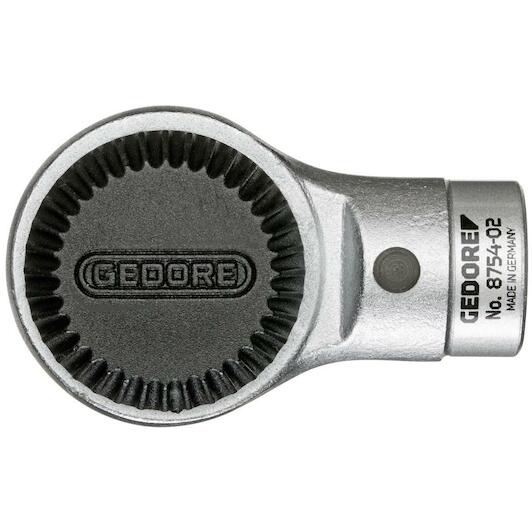

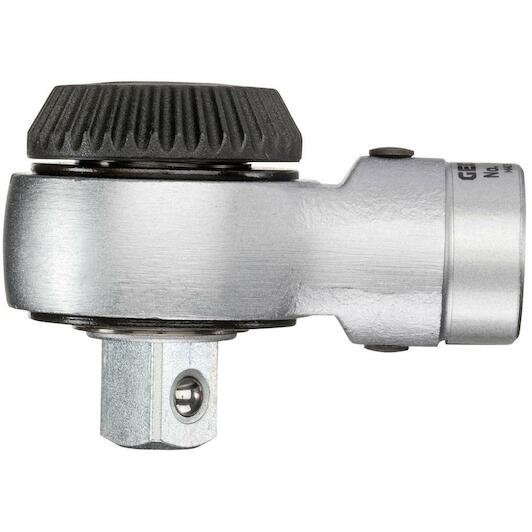

GEDORE 8754-02 push-on ratchet 16 Z 1/2" - 7712010

Name: GEDORE 8754-02 push-on ratchet 16 Z 1/2" - 7712010
Brand: GEDORE
SKU: 41964018
Price: 99.2 EUR
Availability: PreOrder

Supplier number: GEDORE 7712010 | EAN 4002805875421

Recommended Retail Price €157.59

99.20 tax incl.

€81.98 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Ordered before 20:00 - delivered as of 07/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable tightening with the Gedore 8754-02 ratchet head

Practical benefits

Access in confined spaces: The compact 16 mm pin drive and low return angle let you easily access and torque fasteners in tight quarters.
Built for heavy loads: Forged from chrome-vanadium steel, it withstands continuous torque loads up to 340 Nm during demanding fastening tasks.
Fast and secure changes: The integrated locking pin secures the tool head firmly to your torque wrench while allowing quick attachment changes.

In a nutshell

The right choise for

With the Gedore 8754-02 attachable reversible ratchet head, you expand your modular torque wrench for demanding assembly jobs. The 16 z round pin connection with an integrated locking pin ensures a firm fit and fast tool changes. Featuring a 48-tooth mechanism with a compact 7.5° return angle, it allows you to fasten bolts smoothly in tight machine assemblies and engine compartments. Forged from matt chrome-vanadium steel, it easily handles continuous torque loads up to 340 Nm in accordance with din en iso 6789:2003. The standard 1/2" square drive and 32.0 mm depth gauge dimension ensure accurate, controlled tightening every time.

Product information FAQ

€99.20

tax incl.

Key features according to our expert

Drive profile size: 1/2"

Product description

The solution to tricky assembly problems, easily interchangeable
Forged
Chrome-Vanadium steel
Matt chrome-plated
With pin lock
Max. continuous load capacity of piercing square according to DIN EN ISO 67892003 or max. load on holder

All Features

Drive profile size: 1/2"
Number of teeth: 48
Material: Chrome-Vanadium steel
Drive square [metric]: 12.5 mm
Drive square [inch]: 1/2"
Drive mounting, pin ø: 16 mm
Drive type/drive: Reversible ratchet
Pitch size [metric]: 32.0 mm
Permanent load capacity: 1/2" = 340 N-m
Retrieval angle: 7,5 °

Brand GEDORE
41964018
EAN 4002805875421
Supplier number GEDORE 7712010

Frequently asked questions about this product

Answered by specialists

Which tools is this ratchet head compatible with?: It features a round 16 Z (16 mm pin) connection for torque wrenches and holders with a matching 16 Z cavity.
What is the square drive size of this ratchet?: It has a standard 1/2" (12.5 mm) male square drive for sockets.
What is the maximum continuous load capacity?: The maximum continuous load is 340 Nm in accordance with DIN EN ISO 6789:2003.
How many teeth does the ratcheting mechanism have?: It features 48 teeth with a small 7.5° return angle for confined spaces.
What is the depth gauge dimension (offset) for calibration?: The depth gauge dimension is 32.0 mm, which is required for correct torque calculation.
