Application Controlled screw tightening in the range 150 - 750 Nm / 110 - 550 lbf-ft
Adjustable, audible and tactile switch-off robust torque spanner with integrated ratchet
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard.
For controlled clockwise and anticlockwise tightening

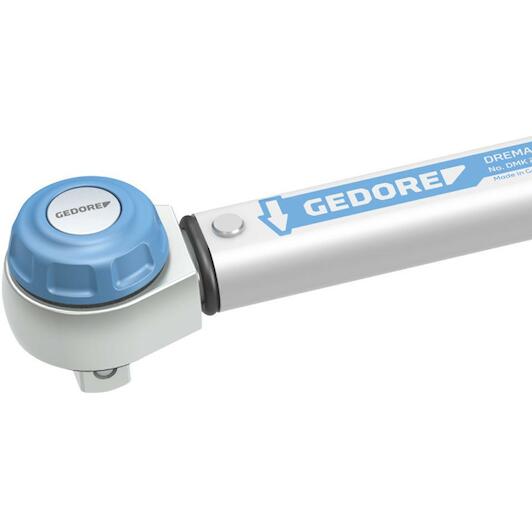

Models DMK 1/2" mushroom head square with push-button release and ball lock
From modelNo.
DMK 400 with 3/4 pitch square and pin lock
Robust, painted tubular steel construction, with galvanised ratchet and high-quality plastic parts
Ergonomically shaped plastic handle with calibration aid
Switchover between main scale Nm and secondary scale lbf-ft for avoiding reading errors when setting the desired torque
With micrometer scale for Nm main scale for setting intermediate scale values
Automatic switch-off using audible and tactile signal
Ergonomic torque adjustment system with instruction symbol
Possibility of quick adjustment using a pin spanner, not included in scope of supply
