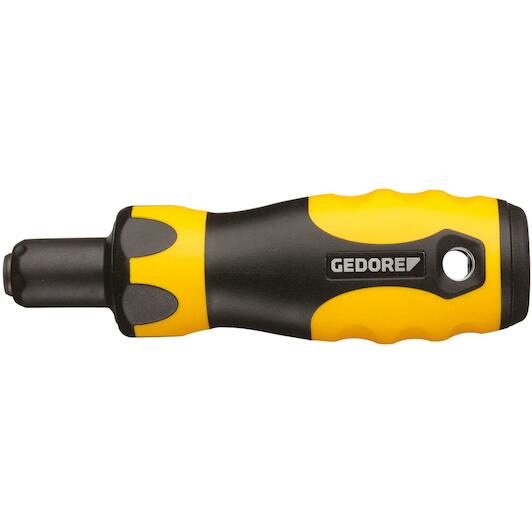

Torque screwdriver Type ESD FH,Models 4.5 and 13.5 with additional transverse handle for easier work,Test certificate according to DIN EN ISO 6789-2:2017,Delivery in sturdy carton packaging
Product description
Application Controlled screw tightening in the range 2.5 - 13.5 Nm
Series assembly with constant tightening value
Electronics industry, precision mechanics and industrial production
Design Fixed adjustable torque spanner - without scale
With 1/4" hexagonal socket for 1/4" bits according to DIN 3126 - C 6,3
Classified according to DIN EN ISO 67892003 Type II Class F, with traceable manufacturer's certificate
Accuracy +/- 6 % tolerance of the set scale value
Conforms to EPA (Electrostatic Protected Area), for use in electrostatically sensitive applications
Precision ball mechanism for controlled clockwise and anticlockwise tightening
Precision mechanism glides on noticeably when set value is reached
Automatic return to home position
Fatigue-free working is achieved by an ergonomic handle and quiet shut-off
A calibration sticker can be applied in the designated place
RAHSOL DREMOTEC can be supplied with a fixed factory setting or set manually using a suitable testing device
If fixed factory setting is required, please state Nm value when ordering (price on request)
Scope of delivery Torque screwdriver Type ESD FH
Models 4.5 and 13.5 with additional transverse handle for easier work
Test certificate in accordance with DIN EN ISO 6789-22017
