What is the torque range of this torque wrench?

The Gedore TF-Z50 features an adjustment range of 10 to 50 Nm for controlled tightening.

What drive fitting does this wrench use?

It features a 16 mm round spigot drive designed for compatible insert tools.

Can this wrench tighten both clockwise and counter-clockwise?

Yes, reversing the insert tool allows controlled tightening in both directions.

How does the tool indicate that the set torque is reached?

The mechanism provides a clearly perceptible and audible click signal.

Is the Gedore TF-Z50 rated for VDE or ESD use?

No, this torque wrench is not VDE certified and is not ESD safe.

GEDORE TF-Z50 Torcofix Z 16 torque spanner, 10-50 Nm - 3288307

Name: GEDORE TF-Z50 Torcofix Z 16 torque spanner, 10-50 Nm - 3288307
Brand: GEDORE
SKU: 08088318
Price: 153.2 EUR
Availability: PreOrder

Supplier number: GEDORE 3288307 | EAN 4010886965634

Recommended Retail Price €251.90

153.20 tax incl.

€126.61 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Controlled precision for accurate tightening

Practical benefits

Accurate torque setting range: You adjust tightening values between 10 and 50 Nm with ease using this reliable Gedore tool.
Clear tactile release signal: The internal spring mechanism produces an audible and noticeable click when you reach the selected torque level.
Versatile drive spigot connection: With the 16 mm round spigot holder, you quickly mount interchangeable fittings for clockwise and counter-clockwise operations.

In a nutshell

The right choise for

With the Gedore TF-Z50 Torcofix z 16 torque wrench, you tighten threaded fasteners with complete control and exact accuracy. Thanks to the adjustable range from 10 to 50 Nm, you reliably prevent stripped threads and component damage on sensitive assemblies. The 16 mm drive spigot makes switching interchangeable insert tools fast and simple, allowing for effortless tightening in both clockwise and counter-clockwise directions. Once the preset torque is reached, the internal mechanism provides a clear tactile and audible click signal. Whether you are working on automotive maintenance, mechanical engineering, or industrial assembly lines, this analogue torque wrench gives you dependable precision on every single fastening job.

Product information FAQ

€153.20

tax incl.

Key features according to our expert

Max. tightening torque: 50 Nm
Drive profile size: 16 mm
Material ( torque tool): Aluminium housing with tubular steel rod
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Overall length: 297 mm
Min. tightening torque: 10 Nm

Product description

Application Controlled screw tightening in the range 10 - 50 Nm / 7.5 - 37 lbf-ft
Adjustable, audible and tactile switch-off robust torque spanner with round pin take-up
Design Classified according to DIN EN ISO 6789-22017 Type II Class A, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the +/- 4% required by the standard
Including traceable test certificate (DIN EN ISO 6789-22017)
Tbv controlled right- and left-hand tightening (reversing insertion tool for changing direction)
Pin holder Ø 16 mm
Working calibration distance 32 mm (Ø 16 mm)
Robust, matt powder-coated steel pipe construction and high-quality plastic parts
New ergonomic handle, shaped according to the natural grip position of the hand
Clearly identifiable, hand-feelable, centring and calibration aid in the middle of the handle
Double scale Nm / lbf-ft with vernier (Nm), enlarged viewing window protects against dirt and damage
With vernier scale for Nm main scale for setting intermediate scale values
Lbf-ft setting via main scale only
Vertical arrangement of scale, thus suitable for left- and right-handed users
Setting mark directly above scale, prevents reading errors (parallax error)
Unit marking integrated in the scale and also protected from dirt by viewing window
Precise turn-off mechanism generates a clear tactile and audible signal when the set tightening value is reached
Includes roll-off safety device, prevents rolling away when the spanner is put down

All Features

Max. tightening torque: 50 Nm
Drive profile size: 16 mm
Material ( torque tool): Aluminium housing with tubular steel rod
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Overall length: 297 mm
Min. tightening torque: 10 Nm
Pitch size [metric]: 32.0 mm
Fixed setting: No
Drive type/drive: Drive pin
Tightening torque (min.) [lbf-ft]: 7.5 lbf-ft
Lever length drive side [mm]: 32 mm
Tightening direction: Left and right
Test certificate: DIN EN ISO 6789-2:2017
Scale division [nm]: 25 Nm
Precision +/-: +/- 3 %
Storage/contents: Plastic box
Tightening range (min/max) [lbf-ft].: 7.5 lbf-ft - 37 lbf-ft
Overall length [mm]: 297 mm
Torque (min.) [nm].: 10 Nm
Vernier nm: 0.25 Nm
Turn-off mechanism: Short road clearance
Drive size [metric]: 16 mm
Take-up width [mm]: 16 mm

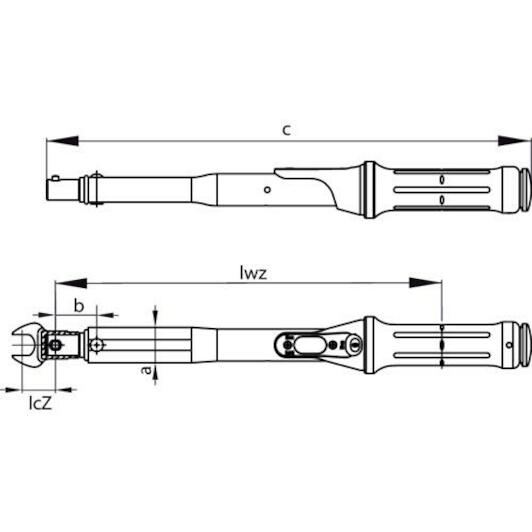

Calibration length: 234.5 mm
Tightening torque (max) [lbf-ft]: 37 lbf-ft
Scale division [lbf-ft]: 25 lbf-ft
Target groups: AutomotiveIndustry Construction and commercial vehicles Military Energy Mechanical Engineering Utilities Service Agriculture Oil and gas
Torque range (min./max.) [nm].: 10 Nm - 50 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: Tubular steel construction
Scale: 2,5
Torque (max.) [nm].: 50 Nm

Brand GEDORE
08088318
EAN 4010886965634
Supplier number GEDORE 3288307

Frequently asked questions about this product

Answered by specialists

What is the torque range of this torque wrench?: The Gedore TF-Z50 features an adjustment range of 10 to 50 Nm for controlled tightening.
What drive fitting does this wrench use?: It features a 16 mm round spigot drive designed for compatible insert tools.
Can this wrench tighten both clockwise and counter-clockwise?: Yes, reversing the insert tool allows controlled tightening in both directions.
How does the tool indicate that the set torque is reached?: The mechanism provides a clearly perceptible and audible click signal.
Is the Gedore TF-Z50 rated for VDE or ESD use?: No, this torque wrench is not VDE certified and is not ESD safe.
