What voltage is this Gedore diagonal cutter insulated for?

It features VDE insulation according to EN 60900/IEC 60900 for safe working up to 1000 V.

What is the cutting capacity of the VDE 8314-160 H?

The induction-hardened cutting edges can cut medium-hard wire up to 1.6 mm in diameter.

Is this tool suitable for tight spaces?

Yes, its slender head design allows easy access in confined areas such as control cabinets.

What is the hardness of the cutting edges?

The precision cutting edges are induction-hardened to a hardness of 63 to 65 HRC.

Is this diagonal cutter non-sparking?

No, this tool is not non-sparking and should not be used in explosive environments.

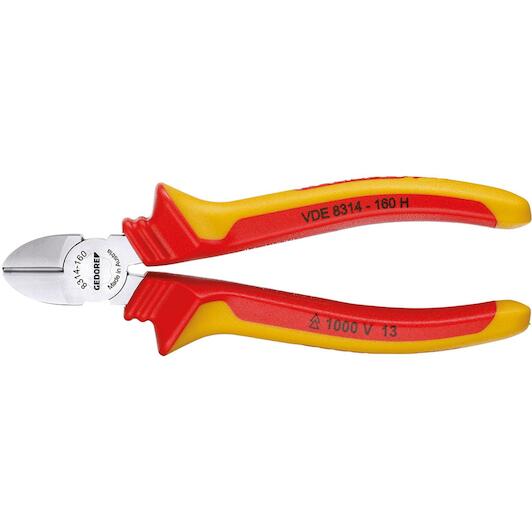

GEDORE VDE 8314-160 H vde diagonal cutters with sleeve insulation 160 mm - 1552163

Name: GEDORE VDE 8314-160 H vde diagonal cutters with sleeve insulation 160 mm - 1552163
Brand: GEDORE
SKU: 01042193
Price: 21.8 EUR
Availability: InStock

Supplier number: GEDORE 1552163 | EAN 4010886816097

Recommended Retail Price €43.56

21.80 tax incl.

€18.02 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate cuts in confined spaces

Practical benefits

Certified insulation up to 1000V: The VDE insulating sleeves keep you fully protected when working on live electrical components.
Gedore provides enduring sharpness: Induction-hardened cutting edges with 63 to 65 HRC give you clean and precise wire cuts.
Easy reach in narrow areas: Thanks to the slender head design, you effortlessly access tight spots inside electrical enclosures.

In a nutshell

The right choise for

With the Gedore vde 8314-160 h diagonal cutter, you work safely and accurately on electrotechnical installations. The VDE-certified insulating sleeves protect you during live-line work up to 1000V. Induction-hardened precision cutting edges with a hardness of 63 to 65 hrc allow you to cut through medium-hard wire up to 1.6 mm with ease. Thanks to the compact 160 mm length and slender head design, you easily reach tight spots in control cabinets and distribution boxes. It gives you the reliability and control needed for efficient maintenance and installation tasks.

Product information FAQ

€21.80

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
VDE approved: Yes
Non-sparking: No
Length: 160 mm

Product description

With slim head for hard-to-reach areas
Inductively hardened precision cutting edges, hardened to 63 - 65 HRC
GEDORE special tempered steel, die-forged and oil-hardened and tempered
handles fitted with VDE sleeve insulation in accordance with
EN 60900/IEC 60900

All Features

Pliers type: Diognal cutting pliers
Vde approved: Yes
Non-sparking: No
Length: 160 mm
Handle version: 2C grip sleeves VDE insulated up to 1000 V.
Overall length [mm]: 160 mm
Esd yes/no: No
Cutting plane shape: with facet
Surface area: chromed
Head height 1 [mm]: 19 mm
Bevel: with
Standard: DIN ISO 5749EN 60900/IEC60900
Head width 1 [mm].: 22.0 mm
Curing process: Induction hardened
Spark-free design: Nein
Cutting surface hardness: 63 - 65 HRC
Cutting values: Hard wire: 2 mm / 12 AWGMedium hard wire: 2.8 mm / 9 AWG Soft wire: 4 mm / 6 AWG
Opening spring present: No
Head thickness t1 [mm]: 10.0 mm
Material: Quenched and tempered steel
Cutting surface length [mm]: 19 mm

Brand GEDORE
01042193
EAN 4010886816097
Supplier number GEDORE 1552163

Frequently asked questions about this product

Answered by specialists

What voltage is this Gedore diagonal cutter insulated for?: It features VDE insulation according to EN 60900/IEC 60900 for safe working up to 1000 V.
What is the cutting capacity of the VDE 8314-160 H?: The induction-hardened cutting edges can cut medium-hard wire up to 1.6 mm in diameter.
Is this tool suitable for tight spaces?: Yes, its slender head design allows easy access in confined areas such as control cabinets.
What is the hardness of the cutting edges?: The precision cutting edges are induction-hardened to a hardness of 63 to 65 HRC.
Is this diagonal cutter non-sparking?: No, this tool is not non-sparking and should not be used in explosive environments.
