HI-FORCE

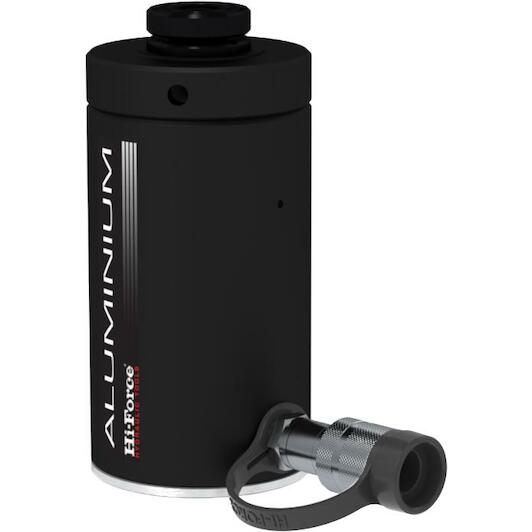

HI-FORCE HFA306 single-acting aluminium lock nut cylinder, 32 tonnes, stroke length 152 mm

This product has been discontinued.

Product description

  • Lightweight aluminium cylinder for applications where weight and portability are critical
  • Capacity of 32 tonnes
  • Stroke length of 152 mm
  • Working pressure 700 bar
  • Single-acting, spring return
  • Mechanical locking nut allows the load to be locked in place for extended periods of time
  • Hard anodised plunger and cylinder for corrosion resistance and increased durability
  • Bearing surfaces with minimal friction
  • Anti-extrusion seals for improved high-pressure performance
  • Tilt saddles fitted as standard on all models
  • Steel base plate fitted as standard on all models
  • Integral stop ring
  • Oil capacity: 694 cm³
  • Cylinder lift area: 45.4 cm²
  • Construction height: 328 mm
  • Cylinder diameter: 108 mm
  • Piston diameter: 50 mm
  • Weight: 8 kg
Key features according to our expert
  • Diameter: 108 mm
  • Stroke length: 152 mm
  • Max. capacity: 32 t
  • Height: 328 mm
Specifications / All features
  • Brand: HI-FORCE
  • EAN: 5056388005804
  • Supplier number: HI-FORCE HFA306
Diameter
108 mm
Stroke length
152 mm
Max. capacity
32 t
Height
328 mm
