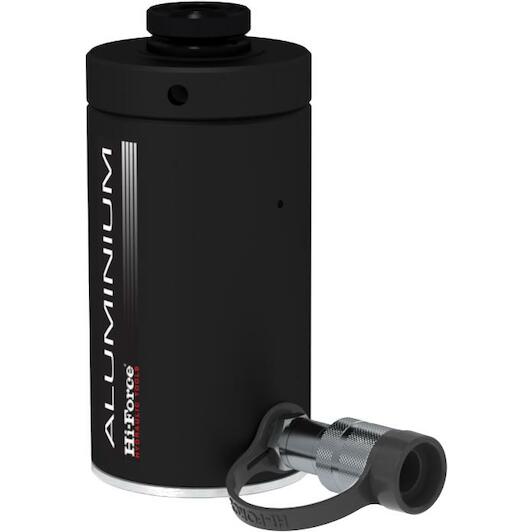

HI-FORCE HFA506 single-acting aluminium lock nut cylinder, 51 tonnes, stroke length 152 mm

Name: HI-FORCE HFA506 single-acting aluminium lock nut cylinder, 51 tonnes, stroke length 152 mm
Brand: HI-FORCE
SKU: 06002498
Price: 3686.87 EUR
Availability: PreOrder

Supplier number: HI-FORCE HFA506 | EAN 5056388005835

3,686.87 tax incl.

€3,047.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium
Manual in your language included

↓ Documents (2) ✆ Talk to a specialist

Product information

€3,686.87

tax incl.

Key features according to our expert

Diameter: 133 mm
Stroke length: 152 mm
Max. capacity: 51 t
Height: 332 mm

Product description

Lightweight aluminium cylinder for applications where weight and portability are critical
Capacity of 51 tonnes
Stroke length of 152 mm
Working pressure 700 bar
Single-acting, spring return
Mechanical locking nut allows the load to be locked in place for extended periods of time
Hard anodised plunger and cylinder for corrosion resistance and increased durability
Bearing surfaces with minimal friction
Anti-extrusion seals for improved high-pressure performance
Tilt saddles fitted as standard on all models
Steel base plate fitted as standard on all models
Integral stop ring
Oil capacity: 1084 cm³
Cylinder lift area: 71.3 cm²
Construction height: 322 mm
Cylinder diameter: 133 mm
Piston diameter: 70 mm
Weight: 11 kg
