Product description

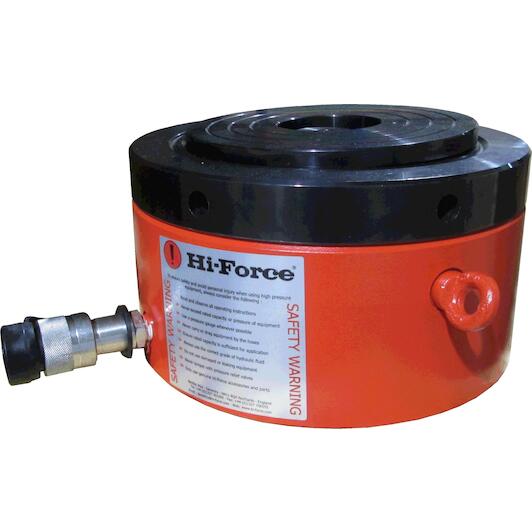

- Hydraulic locking nut cylinder, load returnCapacity
- of 260 tonnesStroke length
- of 45 mmOperating pressure
- 700 barThe
- mechanical locking nut allows the load to be locked for longer periods of timeCompact
- design with low build height, suitable for vertical lifting onlyScrewed
- plunger fitted with tilting saddle as standard to reduce the risk of side loadingGenitrocarbonised
- cylinder housing and plunger for improved corrosion
- protectionLow-friction
- bearing
- surfacesAnti-extrusion
- seals for improved performance at high pressureStroke
- restriction port to limit stroke lengthOptional
- pivot pin for easy rotation of the locking ring: TTB14Oil
- capacity: 1647 cm³Cylinder
- diameter: 366.1 mmPiston
- diameter: 216 mmWeight
- : 69.4 kgBuilding height
- : 159 mm
