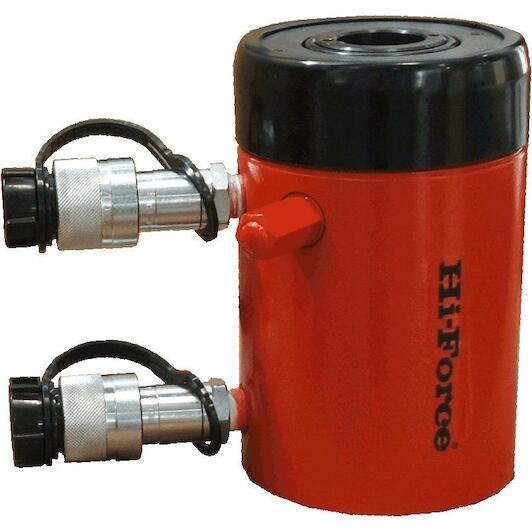

HI-FORCE HHR302 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 51 mm

Name: HI-FORCE HHR302 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 51 mm
Brand: HI-FORCE
SKU: 06002605
Price: 2100.68 EUR
Availability: PreOrder

2,100.68 tax incl.

€1,736.10 excl. VAT (incl. all environmental contributions)

HI-FORCE HHR302 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 51 mm

€2,100.68

On order: delivered from 16/05/2026

each

Ordered before 20:00 - delivered as of 16/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium
Manual in your language included

Product information
Additional info

Product description

Double-acting design for improved control
Hollow plunger design for tooling, maintenance, and chucking applications
Nitrocarbonised plunger for corrosion resistance
Bearing surfaces with minimal friction
Return side equipped with pressure relief valve
Anti-extrusion seals for improved performance at high pressure
Bearing thread suitable for full load
Note: the 33 and 61 tonne versions offer 2 mounting holes at 90° from the coupling.
Thrust force: 33 tonnes
Pull force: 23 tonnes
Stroke length: 51 mm
Oil capacity: 238 cm³
Construction height: 180 mm
Cylinder diameter: 115 mm
Piston diameter: 60 mm
Weight: 12.2 kg
Inner diameter plunger: 35 mm
Connection plunger: 4.1/2"-12
Max. working pressure: 700 bar
