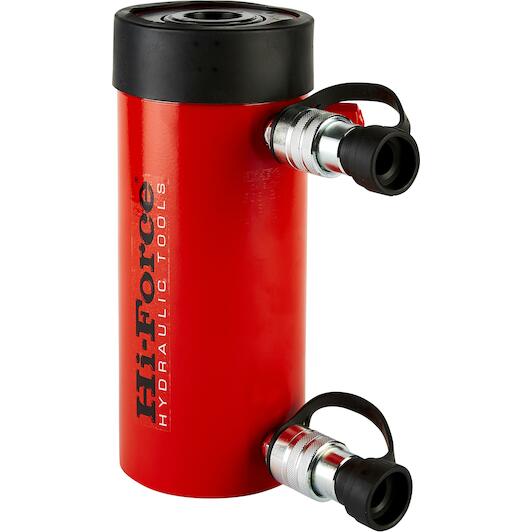

Product description
- Double-acting design for improved control
- Hollow plunger design for tooling, maintenance, and chucking applications
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Return side equipped with pressure relief valve
- Anti-extrusion seals for improved performance at high pressure
- Bearing thread suitable for full load

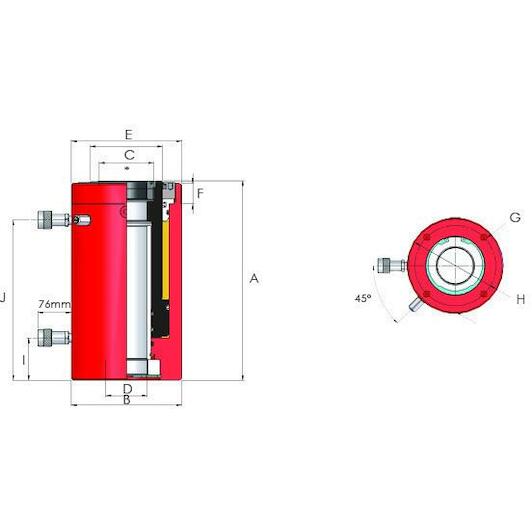

- Note: the 33 and 61 tonne versions offer 2 mounting holes at 90° from the coupling.
- Thrust force: 60 tonnes
- Pull force: 38 tonnes
- Stroke length: 76 mm
- Oil capacity: 652 cm³
- Construction height: 239 mm
- Cylinder diameter: 160 mm
- Piston diameter: 92 mm
- Weight: 30.6 kg
- Inner diameter plunger: 55 mm
- Connection plunger: 6.1/4"-12
- Max. working pressure: 700 bar
