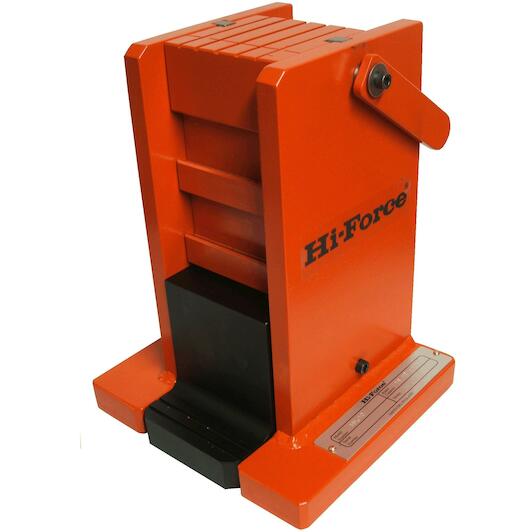

Product description
- Lift guide along full stroke length reduces potential side loading of cylinder
- Using external pump and hose, for increased safety
- Lift toe with a minimum initial height of 25 mm, can be preset to three different lifting positions
- Suitable for applications with multiple lifting points
- Note: the maximum permissible working pressure when lifting on the lifting toe is 595 bar for the HMJ10. Absolutely do not exceed it!
- Can be connected to any 700-bar manual or electric pump
- Min. lifting height: 21 mm
- Capacity: 10 tonnes
- Lifting height: 150 mm
- Construction height: 417 mm
- Dimensions base: 172 x 196 mm
- Weight: 22.6 kg
- Maximum hydraulic working pressure: 700 bar
Key features according to our expert
-
Max. capacity: 10 t
-

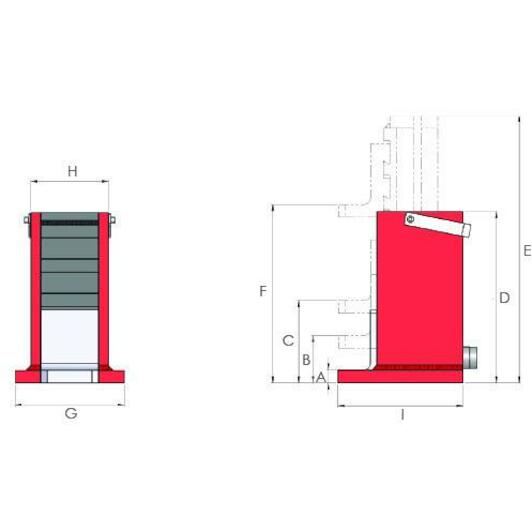

Technical drawing (D): 272 mm
-
Technical drawing (I): 187 mm
-
H: 122 mm
-
Technical drawing (G): 202 mm
-
Technical drawing (F): 283 mm
-
Stroke length: 150 mm
-
Technical drawing (E): 422 mm
-
Technical drawing (C): 133 mm
-
Technical drawing (B): 79 mm
-
Technical drawing (A): 25 mm
-
Weight: 29,2 kg
-
Material (housing): Steel
-
Capacity hefteen: 8,5 t
Specifications / All features
-
Brand:
HI-FORCE
-
06002672
-
EAN:
5056388007334
-
Supplier number:
HI-FORCE HMJ10
- Max. capacity
- 10 t
- Technical drawing (d)
- 272 mm
- Technical drawing (i)
- 187 mm
- H
- 122 mm
- Technical drawing (g)
- 202 mm
- Technical drawing (f)
- 283 mm
- Stroke length
- 150 mm
- Technical drawing (e)
- 422 mm
- Technical drawing (c)
- 133 mm
- Technical drawing (b)
- 79 mm
- Technical drawing (a)
- 25 mm
- Weight
- 29,2 kg
- Material (housing)
- Steel
- Capacity hefteen
- 8,5 t
