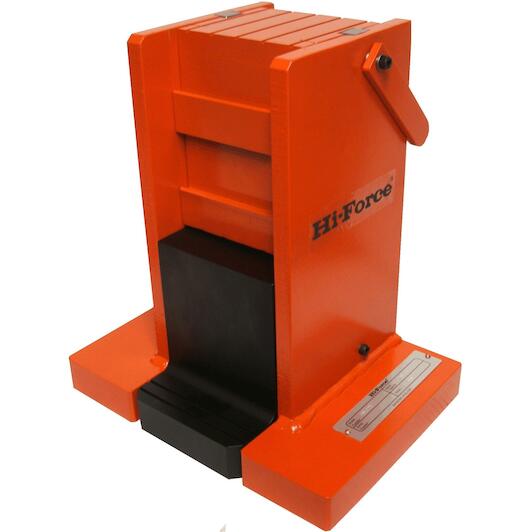

Product description
- Lift guide along full stroke length reduces potential side loading of cylinder
- Using external pump and hose, for increased safety
- Lift toe with a minimum initial height of 25 mm, can be preset to three different lifting positions
- Suitable for applications with multiple lifting points
- Note: The maximum permissible working pressure when lifting on the lifting toe is 560 bar for the HMJ25. Absolutely do not exceed this!
- Can be connected to any 700-bar manual or electric pump
- Min. lifting height: 30 mm
- Capacity: 25 tonnes
- Lifting height: 150 mm
- Construction height: 465 mm
- Dimensions base: 202 x 226 mm
- Weight: 55.1 kg
- Maximum hydraulic working pressure: 700 bar
Key features according to our expert
-
Max. capacity: 25 t
-

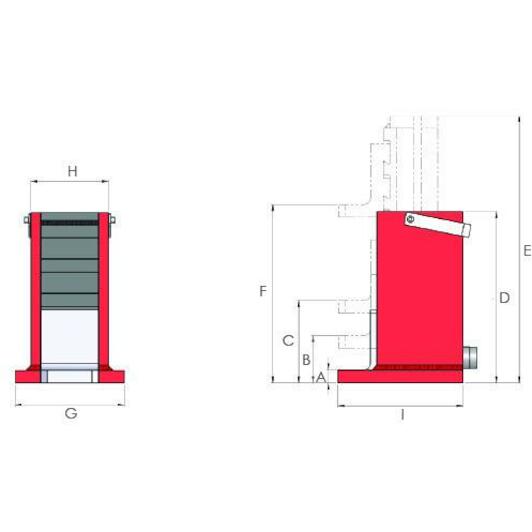

Technical drawing (D): 330 mm
-
Technical drawing (I): 211 mm
-
H: 152 mm
-
Technical drawing (G): 292 mm
-
Technical drawing (F): 349 mm
-
Stroke length: 150 mm
-
Technical drawing (E): 480 mm
-
Technical drawing (C): 199 mm
-
Technical drawing (B): 117 mm
-
Technical drawing (A): 35 mm
-
Weight: 55,1 kg
-
Material (housing): Steel
-
Capacity hefteen: 20 t
Specifications / All features
-
Brand:
HI-FORCE
-
06002673
-
EAN:
5056388007341
-
Supplier number:
HI-FORCE HMJ25
- Max. capacity
- 25 t
- Technical drawing (d)
- 330 mm
- Technical drawing (i)
- 211 mm
- H
- 152 mm
- Technical drawing (g)
- 292 mm
- Technical drawing (f)
- 349 mm
- Stroke length
- 150 mm
- Technical drawing (e)
- 480 mm
- Technical drawing (c)
- 199 mm
- Technical drawing (b)
- 117 mm
- Technical drawing (a)
- 35 mm
- Weight
- 55,1 kg
- Material (housing)
- Steel
- Capacity hefteen
- 20 t
