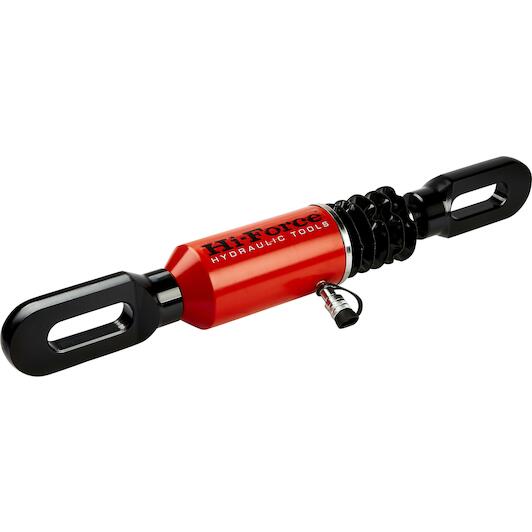

HI-FORCE HPC106C hydraulic single-acting pull cylinder 10 tonnes, stroke length 152 mm

Name: HI-FORCE HPC106C hydraulic single-acting pull cylinder 10 tonnes, stroke length 152 mm
Brand: HI-FORCE
SKU: 06002718
Price: 3926.45 EUR
Availability: PreOrder

Supplier number: HI-FORCE HPC106C | EAN 5056388007525

3,926.45 tax incl.

€3,245.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium
Manual in your language included

↓ Documents (2) ✆ Talk to a specialist

Product information

€3,926.45

tax incl.

Key features according to our expert

Max. capacity: 10 t
Technical drawing (B): 754 mm
H: 80 mm
Technical drawing (F): 30 mm
Technical drawing (E): 35 mm
Technical drawing (D): 99 mm
Stroke length: 152 mm
Technical drawing (C): 58 mm
Technical drawing (A): 602 mm
Weight: 15,5 kg
Oil capacity: 228 cm³
Working pressure: 700 bar
Piston surface: 15 cm²
Max. Length: 754 mm
Min. length: 602 mm

Product description

Single acting, spring return
Substantial, hydraulic tensile force for steel plate alignment, cable tensioning and general load moving applications
Equipped with replaceable draw and clevis eyes on plunger and cylinder housing
Nitrocarbonised plunger for corrosion resistance
Anti-extrusion seals for improved performance at high pressure
Protective plunger bellows fitted as standard
Oil capacity: 228 cm³
Length: 581 mm
Fastening: forks
Weight: 15.5 kg
