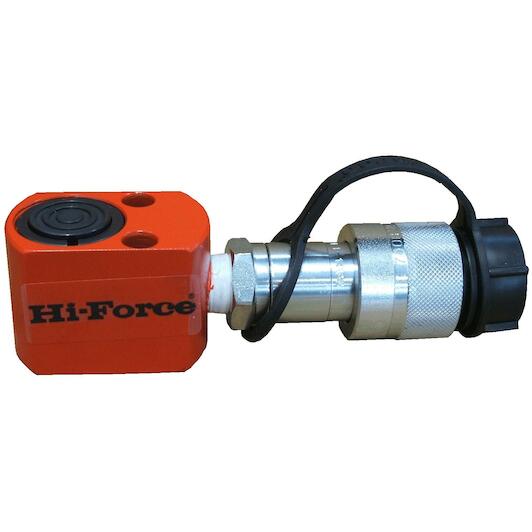

Product description
- Single-acting, spring return
- Low build height design for use in confined spaces
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved performance at high pressure
- Capacity: 4.5 tonnes
- Stroke length: 16 mm
- Oil capacity: 10 cm³

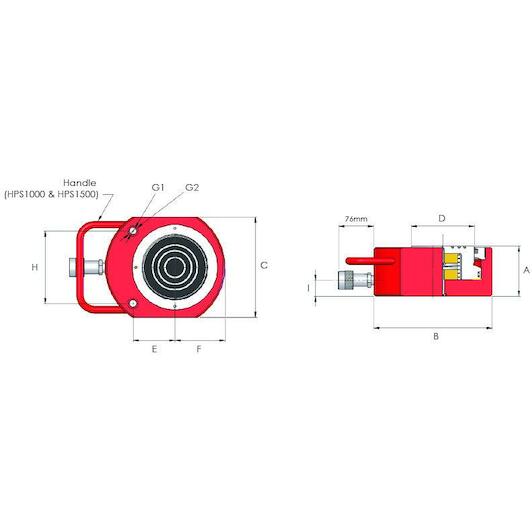

- Construction height: 42 mm
- Cylinder diameter: 60 mm
- Piston diameter: 24 mm
- Weight: 0.9 kg
- Max. working pressure: 700 Bar
- Complete with quick-release coupling
