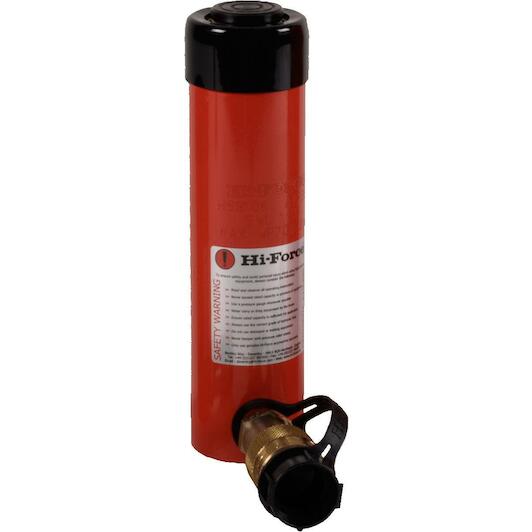

Product description
- Single-acting, spring return
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Sleeve thread suitable for full load
- Slotted saddles fitted as standard on all models

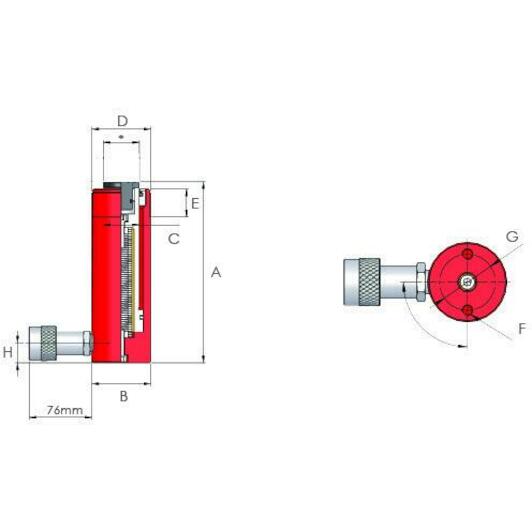

- Capacity: 10 tonnes
- Stroke length: 150 mm
- Oil capacity: 217 cm³
- Construction height: 225 mm
- Cylinder diameter: 57 mm
- Piston diameter: 35 mm
- Weight: 4.2 kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
