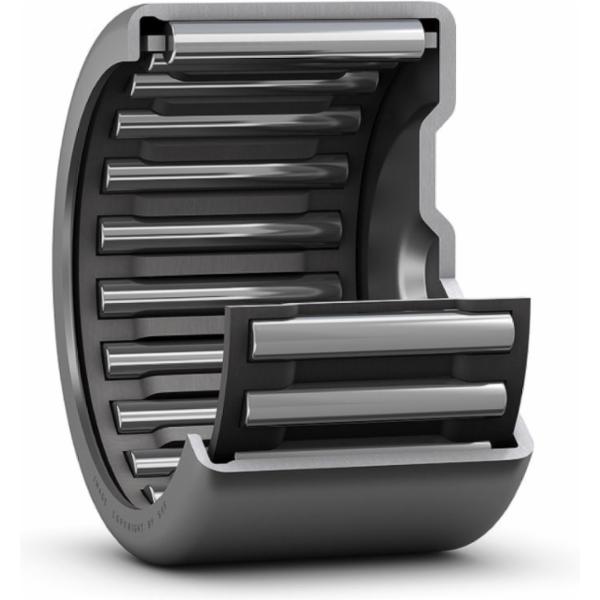

INA BK 0609 single-row needle roller bearing without inner ring 6 x 10 x 9 mm - 10204458

Show more features

Inner diameter

6 mm

Width

9 mm

Number of rows

1

Version (needle cage)

Closed-end

Outer diameter

10 mm

Sealing

Without

Cage

Sheet steel

Seal type

Not applicable

Lubricant

None

Reference speed

20,000 r/min

Relubrication feature

Without

Bore diameter of needle roller complement

6 mm

Basic static load rating

2.7 kN

Aligning feature

Without

Tolerance class

Normal

Bearing part

Bearing without inner ring

Limiting speed

22,000 r/min

Number of flanges, outer ring

2

Outer ring type

Drawn cup with one closed end

Basic dynamic load rating

2.81 kN

Coating

Without

Outside diameter

10 mm

Material, bearing

Bearing steel
