What are the dimensions of this needle roller bearing?

The bearing has an inside diameter of 16 mm, an outside diameter of 22 mm, and a width of 16 mm.

Does this needle roller bearing have seals?

No, this is an open-ended design without seals.

What material is the cage made of?

The cage of this needle roller bearing is made of sheet steel.

What is this drawn cup needle roller bearing best suited for?

It is ideal for compact assemblies with limited radial space requiring high load carrying capacity.

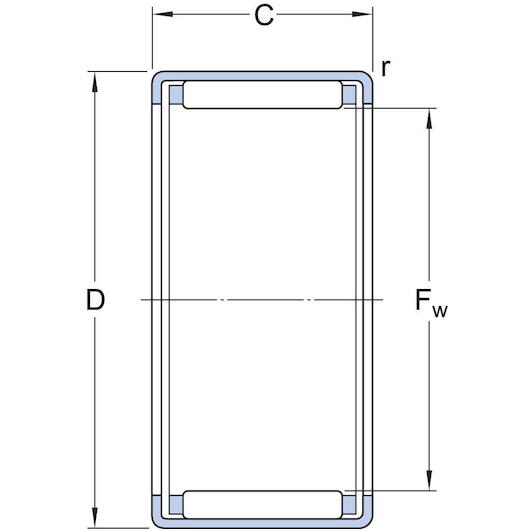

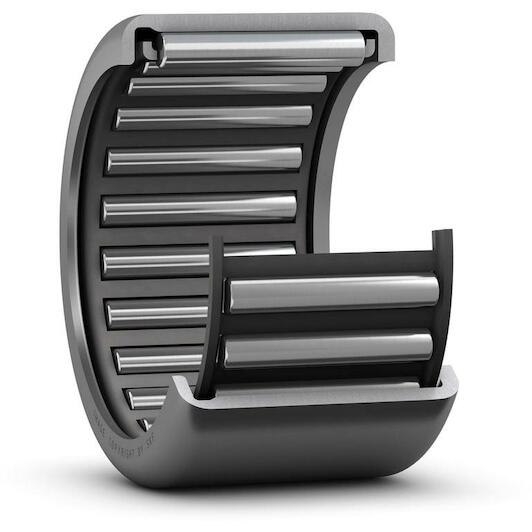

SKF HK 1616 Single-row needle roller bearing without inner ring 16 x 22 x 16 mm

Supplier number: SKF HK 1616 | EAN 7316577010360

Recommended Retail Price €15.11

7.40 tax incl.

€6.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Compact bearing with HK 1616

Practical benefits

Minimal radial space required: The thin drawn cup outer ring lets you design compact assemblies directly on hardened shafts.
High radial load capacity: A durable sheet steel cage guides the rollers to handle heavy radial forces reliably.
Simple press fit mounting: You easily press this open drawn cup needle roller bearing into housings without an inner ring.

In a nutshell

The right choise for

With the Skf hk 1616 open drawn cup needle roller bearing, you achieve an extremely compact bearing arrangement in tight radial spaces. This single-row needle roller bearing has no inner ring and runs directly on a hardened and ground shaft, saving valuable installation space and reducing overall weight. Thanks to the durable sheet steel cage and thin-walled outer ring, it handles heavy radial loads with dependable stability. Featuring dimensions of 16 x 22 x 16 mm, you easily press-fit this open bearing directly into housings for transmissions, gearboxes, and industrial machinery.

Product information FAQ

€7.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 16 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 22 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 16 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 22 mm
Basic static load rating: 15.6
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 16
Relubrication feature: Without
Reference speed: 14000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 10.5
Outer ring type: Drawn cup with open ends
Limiting speed: 16000
Coating: Without
Outer diameter: 22
Material, bearing: Bearing steel

Brand SKF
01290541
EAN 7316577010360
Supplier number SKF HK 1616

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The bearing has an inside diameter of 16 mm, an outside diameter of 22 mm, and a width of 16 mm.
Does the SKF HK 1616 come with an inner ring?: No, this drawn cup needle roller bearing has no inner ring and runs directly on a hardened shaft.
Does this needle roller bearing have seals?: No, this is an open-ended design without seals.
What material is the cage made of?: The cage of this needle roller bearing is made of sheet steel.
What is this drawn cup needle roller bearing best suited for?: It is ideal for compact assemblies with limited radial space requiring high load carrying capacity.
