INGERSOLL RAND 2101KA pneumatic mini impact spanner square 1/4" 75Nm with socket set 10-piece - 47520766001

INGERSOLL RAND
Supplier number: INGERSOLL RAND 47520766001 | EAN 0663023121482
161.60 tax incl.
€133.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€161.60
tax incl.

Product information

Key features according to our expert

  • Max. tightening torque: 68 Nm
  • Tool holder size: 1/4"
  • Tool holder type: External square
  • Connection size (air): 1/4"
  • Speed: 14500 rpm
  • Max. breakeway torque: 75 Nm

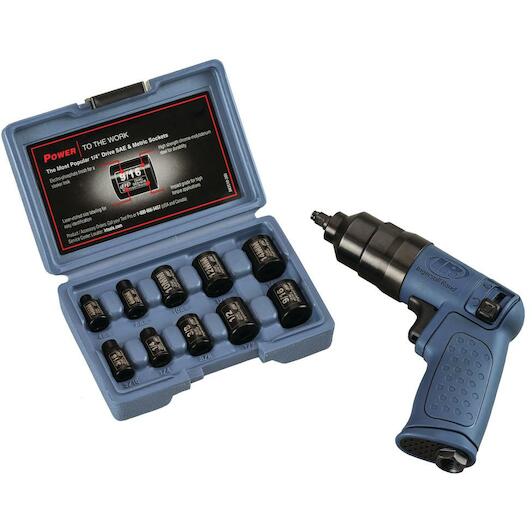

Scope of delivery

  • 5 sockets with inch dimensions: 1/4", 3/16", 3/8", 1/2" and 9/16"
  • 5 sockets with metric sizes: 4, 6, 10, 12 and 14 mm
  • Case for sockets

Product description

  • 1/4" pneumatic mini impact spanner with 75Nm max breakaway torque, 68Nm max tightening torque and 14500 rpmThanks to
  • its small size, this spanner fits even in the hardest-to-reach spacesThe
  • 'rocking dog' impact mechanism is easy to maintain and delivers a powerful punch with low air requirementsLow
  • weight of only 0.7 kgErgonomic
  • composite
  • housingOne-hand forward/reverse switch for easy operation

All Features

Max. tightening torque
68 Nm
Tool holder size
1/4"
Tool holder type
External square
Connection size (air)
1/4"
Speed
14500 rpm
Max. breakeway torque
75 Nm
Connection wire
1/4" NPT
Vibration (m/s²)
3
Max. release torque (nm)
75
Stroke frequency (1 min)
3650
Forward/fast torque (nm)
68
Sound pressure level (db (a))
83.5 / 94.5
Air consumption (l/min)
382
Anvil size (in)
1/4"
Height (mm)
150
Weight (kg)
0.68
Working pressure (bar)
6.2
Length (mm)
175
Width (mm)
43
Max. speed ( min-1)
14500
  • Brand INGERSOLL RAND
  • EAN 0663023121482
  • Supplier number INGERSOLL RAND 47520766001
