Product description

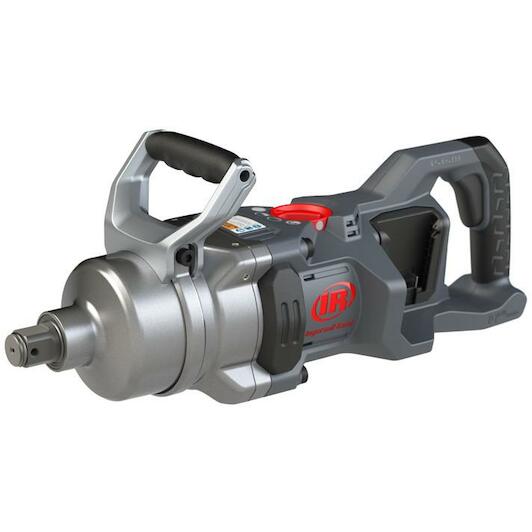

- Powerful 1" impact spanner with balanced weight
- With ergonomic D-handle with 360-degree auxiliary handle
- Up to 3500 Nm breakaway torque and 3000 Nm tightening torque
- Four power control modes, including two with automatic shutdown (at 250 & 550 Nm tightening torque)
- Portable power without installation time like pneumatic tools

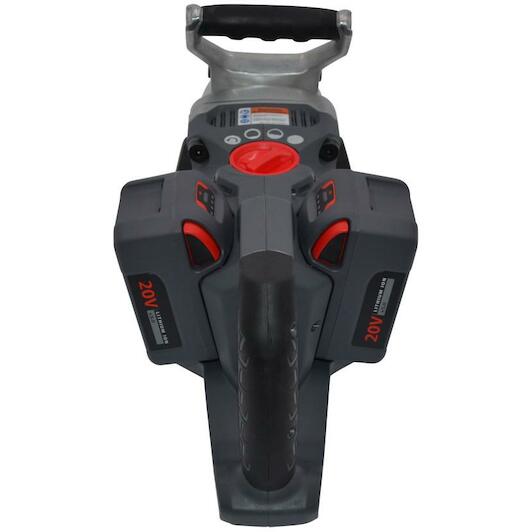

- Superior ergonomics - Both batteries are located in the tool's frame, making it less cumbersome to handle.
- IP56-rated for use in harsh environmental conditions, such as truck fleet maintenance, oil & gas, power generation and the rail industry.
- Protected against dust and airborne particles, as well as powerful water jets.
- Impact- and chemical-resistant composite housing withstands almost all liquids found in maintenance workshops or work sites.
- Up to 250 bolts per load - Sufficient capacity to tackle all nuts and bolts in a full working day.
Key features according to our expert
-
Battery voltage: 2 x 20 V
-
Retention type (socket): Friction ring
-
Number of batteries included: 0
-
UN number: Not applicable
-
Type of system case: Not applicable
-
Weight: 11,02 kg
-
With extended drive shaft: No
-
Max. breakeway torque: 3525 Nm
-
Max. tightening torque: 3000 Nm
-
Tool holder type: External square
-
Tool holder size: 1"
Specifications / All features
-
Brand:
INGERSOLL RAND
-
03176011
-
EAN:
0663023155739
-
Supplier number:
INGERSOLL RAND W9491
- Battery voltage
- 2 x 20 V
- Retention type (socket)
- Friction ring
- Number of batteries included
- 0
- Un number
- Not applicable
- Type of system case
- Not applicable
- Weight
- 11,02 kg
- With extended drive shaft
- No
- Max. breakeway torque
- 3525 Nm
- Max. tightening torque
- 3000 Nm
- Tool holder type
- External square
- Tool holder size
- 1"
- Anvil size (in)
- 1"
- Voltage (v)
- 20
- Special features
- Komposit-Gehäuse, 4-stufiger Leistungsregler
- Max. speed ( min-1)
- 890
- Vibration (m/s²)
- 25.8 (BL2022)
- Breakaway torque max (nm)
- 3525 BL2022)
- Max. release torque (nm)
- 3000 (BL2022)
- Stroke frequency (1 min)
- 1170 (BL2022)
- Forward/fast torque (nm)
- 3000 (BL2022)
- Weight (kg)
- 11.02
- Length (mm)
- 511
- Height (mm)
- 206
- Width (mm)
- 176
- Compatible
- BC1221, BC1221-EU
