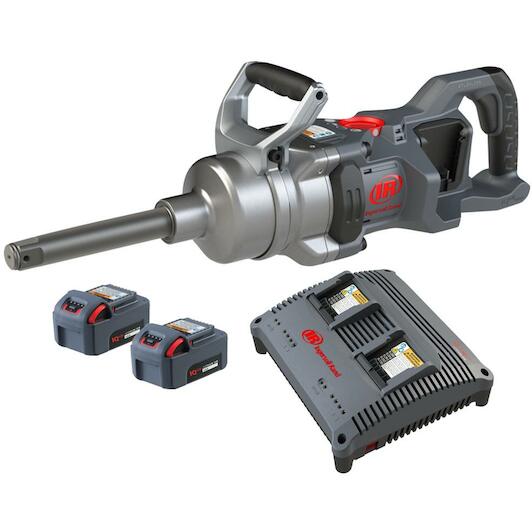

Scope of delivery
- 2x 5.0 Ah batteries
- Duo charger
Product description
- Powerful 1" impact spanner with balanced weight
- With ergonomic D-handle with 360-degree auxiliary handle
- Up to 4000 Nm breakaway torque and 3500 Nm tightening torque
- Four power control modes, including two with automatic shutdown (at 250 & 550 Nm tightening torque)
- Portable power without installation time like pneumatic tools
- Superior ergonomics - Both batteries are located in the tool's frame, making it less cumbersome to handle.
- IP56-rated for use in harsh environmental conditions, such as truck fleet maintenance, oil & gas, power generation and the rail industry.
- Protected against dust and airborne particles, as well as powerful water jets.
- Impact- and chemical-resistant composite housing withstands almost all liquids found in maintenance workshops or work sites.
- Up to 250 bolts per load - Sufficient capacity to tackle all nuts and bolts in a full working day.
- Better access to hard-to-reach places with the 6" extension
Key features according to our expert
-
Battery voltage: 20 V
-
With extended drive shaft: Yes
-
Number of batteries included: 2
-
Weight: 11,75 kg
-
Retention type (socket): Friction ring
-
Type of system case: Not applicable
-
Max. breakeway torque: 4067 Nm
-
Max. tightening torque: 3000 Nm
-
Tool holder type: External square
-
Tool holder size: 1"
-
Capacity (battery): 5 Ah
Specifications / All features
-
Brand:
INGERSOLL RAND
-
03216256
-
EAN:
0663023166681
-
Supplier number:
INGERSOLL RAND W9691-K2E-EU
- Battery voltage
- 20 V
- With extended drive shaft
- Yes
- Number of batteries included
- 2
- Weight
- 11,75 kg
- Retention type (socket)
- Friction ring
- Type of system case
- Not applicable
- Max. breakeway torque
- 4067 Nm
- Max. tightening torque
- 3000 Nm
- Tool holder type
- External square
- Tool holder size
- 1"
- Capacity (battery)
- 5 Ah
- Anvil size (in)
- 1"
- Special features
- Komposit-Gehäuse, 4-stufiger Leistungsregler
- Max. speed ( min-1)
- 890
- Vibration (m/s²)
- 23.5 (BL2022)
- Breakaway torque max (nm)
- 4067 (BL2022)
- Max. release torque (nm)
- 3000 (BL2022)
- Stroke frequency (1 min)
- 1170 (BL2022)
- Forward/fast torque (nm)
- 3000 (BL2022)
- Weight (kg)
- 11.75
- Length (mm)
- 664
- Height (mm)
- 206
- Width (mm)
- 176
- Voltage (v)
- 20
