Product description:

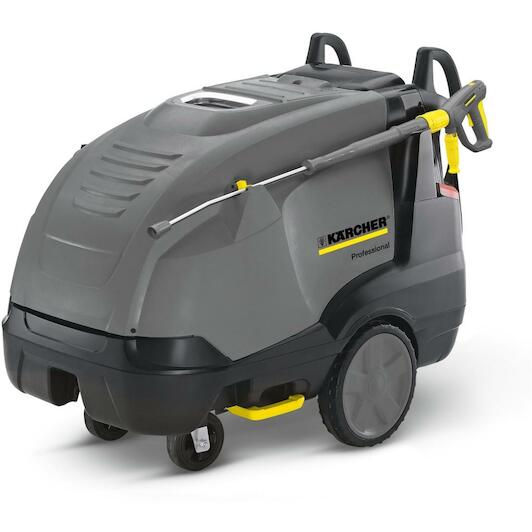

HDS 10/20-4 M - the most powerful 3-phase hot water high-pressure cleaner in the Kärcher middle class. With 4-pole, water-cooled electric motor, 2 cleaning agent tanks, service electronics.
- Uncompromising across the board: maximum pressure, maximum flow rate. The HDS 10/20-4 M hot water high-pressure cleaner is the most powerful machine in the Kärcher middle class. An innovative eco!efficiency mode as well as a precise cleaning agent dosing unit and the optimised burner engineering reduce environmental pollution and also benefit your wallet, whereas the patented nozzle technology, ceramic piston, turbo blower as well as the excellent pump efficiency ensure the best cleaning results. The operability, which is characterised for example by an intuitive dashboard, LED displays, as well as a clever mobility concept that makes handling the machine and its transport extremely easy is also optimal. What's more all service and maintenance work is also simple as all components are easily accessible and operating data can be called up easily at any time.
Equipment:
- Spray gun, EASY!Force Advanced
- High-pressure hose, 10 m
- Spray lance, 1050 mm
- Power nozzle
- Tanks for cleaning agent, calcification protection and fuel can be filled from the outside

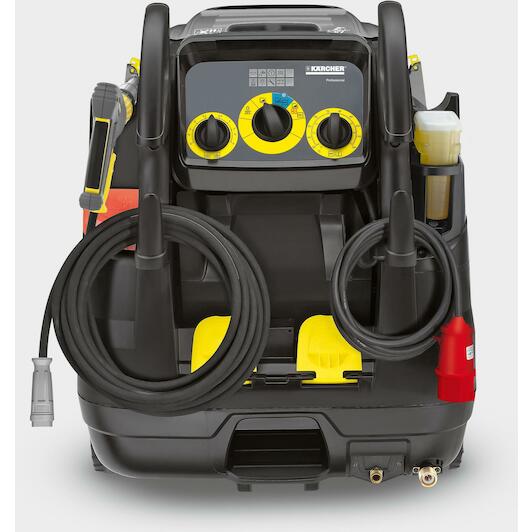

- Control panel with display light
- Pressure cut-off
- Pole reverse plug (3-phase)
- Service electronics with LED display
- Two detergent tanks
- Dry-running protection
Application areas:

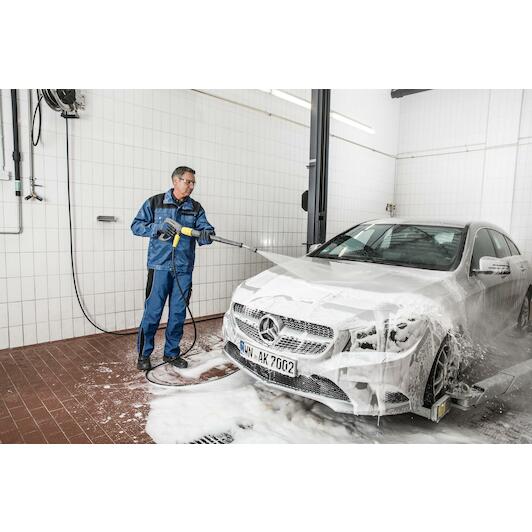

- Vehicle cleaning

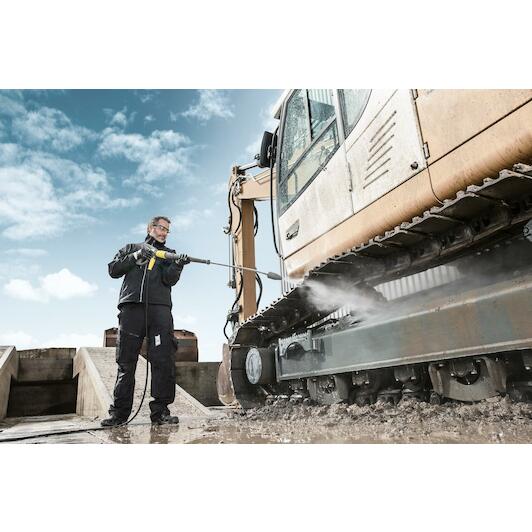

- Device and machine cleaning
- Workshop cleaning
- Cleaning of outside areas
- Service station cleaning
- Facade cleaning
- Swimming pool cleaning
- Cleaning of sports facilities
- Cleaning during production processes
- Cleaning of production facilities
Features and benefits:
- Efficiency. In the eco!efficiency mode the machine operates in the most economical temperature range (60°C) - with full water flow. The burner cycles are optimised to reduce fuel consumption by 20% compared to full-load operation.
- Maximum efficiency. Highly efficient, tried-and-tested burner technology. Four-pole electric motor with three-piston axial pump. Water-cooled motor for a high level of performance and durability.
- Operational safety. The large, integrated water fine filter reliably protects the high-pressure pump against small dirt particles. The integrated exhaust gas thermostat switches off the drive motor if the emission temperature exceeds 300 °C. The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Additional features and benefits:
- Storage
- Safe and ample storage for protective gear, accessories and cleaning agents.
- Storage hooks for power cable and high-pressure hose.
- Mobility concept
- "Jogger" design with large rubber-tyred wheels and steering roller.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
- Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
- Effortless operation at last: the EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
