Which wire sizes are compatible with this wire stripper?

It is designed for wires from AWG 20 to 10 (0.5 to 6 mm²), with fixed settings for AWG 20, 18, 16, 14, 12, and 10.

Which insulation materials can this tool handle?

It strips tough and multi-layer insulating materials such as PTFE, silicone, Radox, Kapton, and rubber cleanly.

Does this stripper feature a built-in cutter or crimper?

No, this precision tool is dedicated purely to wire stripping and has no cutting or crimping functions.

How do you ensure consistent stripping lengths?

The tool features an adjustable length stop from 5 to 20 mm for accurate and repetitive work.

Are the blades on the Knipex 12 12 13 replaceable?

Yes, the precision-ground shaped blades are replaceable and matched to specific conductor diameters.

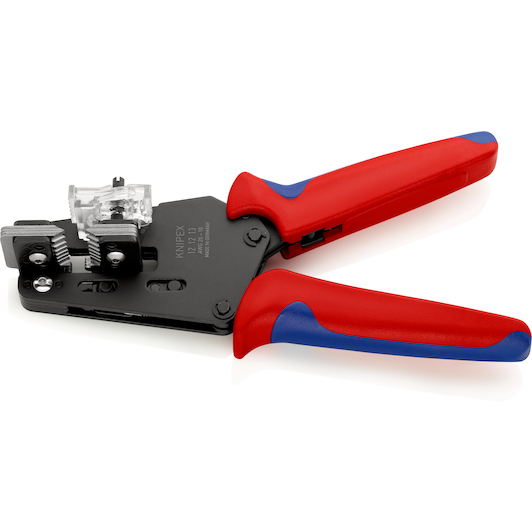

KNIPEX 12 12 13 precision stripping pliers with precision-ground blades with multi-component grips browned 195 mm

Name: KNIPEX 12 12 13 precision stripping pliers with precision-ground blades with multi-component grips browned 195 mm
Brand: KNIPEX
SKU: 03064737
Price: 139.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 12 12 13 | EAN 4003773077534

Recommended Retail Price €191.72

139.80 tax incl.

€115.54 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Accurate stripping with Knipex 12 12 13

Practical benefits

Clean circumferential cut: Two precision shaped blades cut completely around the insulation without nicking or damaging the underlying conductors.
Built for tough insulation: You can effortlessly strip difficult insulating materials like PTFE, silicone, and Radox from AWG 10 to 20.
Consistent repeat stripping lengths: The integrated adjustable length stop lets you reproduce exact stripping lengths reliably during repetitive tasks.

In a nutshell

The right choise for

Strip demanding wire insulation cleanly and without damaging conductors using the Knipex 12 12 13 precision wire stripper. Its precision-ground shaped blades cut completely around tough materials such as PTFE, silicone, Radox, and rubber without scoring the underlying core. Designed with fixed positions for awg 10 to 20 (0.5 to 6 mm²), the automatic mechanism removes insulation in a single squeeze. The integrated adjustable length stop delivers identical stripping lengths for repetitive wiring tasks in control cabinet assembly or electronics manufacturing. Equipped with multi-component grips and replaceable blades, this tool provides the control and accuracy required for professional installations.

Product information Accessories FAQ

€139.80

tax incl.

Key features according to our expert

For min. cable cross-section: 0,5 mm²
With automatic stripping function: Yes
With cutting function: No
With crimping function: No
Adjustment type: Fixed settings
Length: 195 mm
For max. cable cross-section: 6 mm²

Product description

Correct stripping even of difficult-to-remove insulation materials of PTFE, silicone, Radox®, Kapton® and rubber; also from multiple layers
A second pair of blades holds the remaining insulation reliably in place
Precisely matched to the conductor cross-section, exchangeable precision blades
With length stop for even stripping lengths in serial work
Especially for cables according to US specification (AWG)

Documents

⤓ Product sheet PDF

All Features

For min. cable cross-section: 0,5 mm²
With automatic stripping function: Yes
With cutting function: No
With crimping function: No
Adjustment type: Fixed settings
Length: 195 mm
For max. cable cross-section: 6 mm²
Awg: 20 / 18 / 16 / 14 / 12 / 10
Handle: with multi-component handle
Reach compliance: contains SVHC
Rohs compliance: irrelevant
Weight: 450 g
Dimensions: 195 x 107 x 33 mm
Tang: burnished

Brand KNIPEX
03064737
EAN 4003773077534
Supplier number KNIPEX 12 12 13

Accessories

KNIPEX 12 19 90 Length stop for 12 12 XX

5.69

€4.70 excl. VAT

Delivery time average 10 days.

Frequently asked questions about this product

Answered by specialists

Which wire sizes are compatible with this wire stripper?: It is designed for wires from AWG 20 to 10 (0.5 to 6 mm²), with fixed settings for AWG 20, 18, 16, 14, 12, and 10.
Which insulation materials can this tool handle?: It strips tough and multi-layer insulating materials such as PTFE, silicone, Radox, Kapton, and rubber cleanly.
Does this stripper feature a built-in cutter or crimper?: No, this precision tool is dedicated purely to wire stripping and has no cutting or crimping functions.
How do you ensure consistent stripping lengths?: The tool features an adjustable length stop from 5 to 20 mm for accurate and repetitive work.
Are the blades on the Knipex 12 12 13 replaceable?: Yes, the precision-ground shaped blades are replaceable and matched to specific conductor diameters.
