Product description
- Multifunctional - cutting, dismantling and stripping with one pair of pliers
- Suitable for time-saving dismantling and stripping of insulation of round cables and cables for damp rooms(e.g. NYM cables)

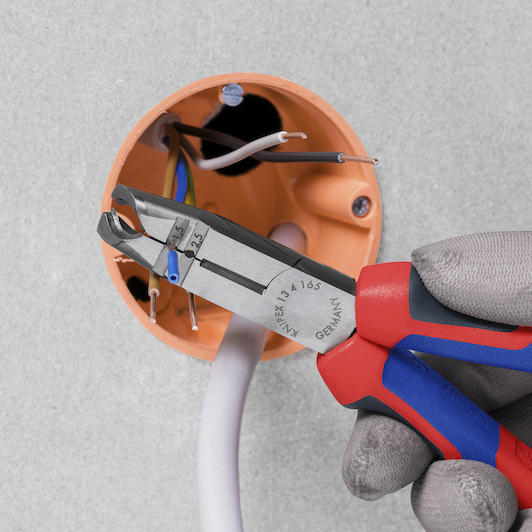

- Simplifies access especially to recessed installation boxes thanks to the slim shape of the head and the optimally curved cutting edge

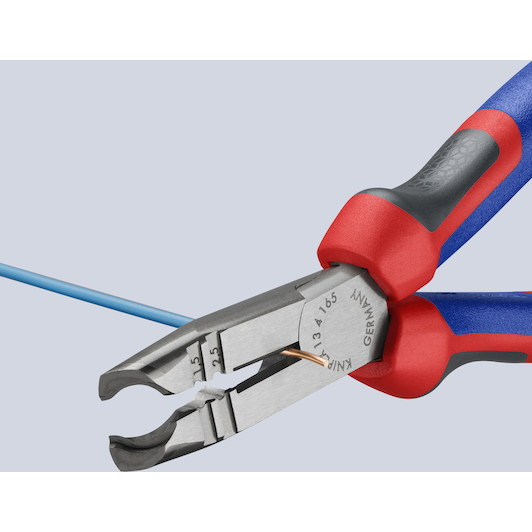

- Easy and damage-free dismantling thanks to the round cutting profile with depth stop

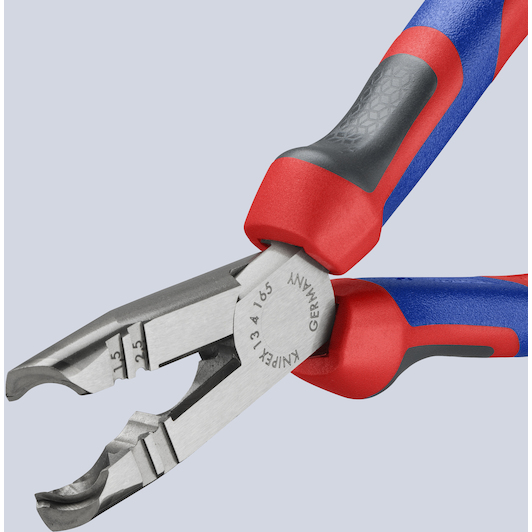

- Universally applicable: precision insulation holes for cables 1.5 and 2.5 mm²
- With side cutter for cutting cables, wires, small screws and nails
- All cutting edges additionally induction-hardened to approx. 61 HRC: for high wear resistance
- 30% lighter than comparable pliers
- With comfort handles: made of three ergonomic components for optimum handling, plus two KNIPEXtend connections for extensions
Key features according to our expert
-
For min. cable cross-section: 0,75 mm²
-
With crimping function: No
-
For max. cable cross-section: 2,5 mm²
-
VDE approved: No
-
Adjustment type: Fixed settings
-
Length: 165 mm
-
With cutting function: Yes
-
With automatic stripping function: No
-
Max. cable diameter: 13 mm
-
Min. cable diameter: 8 mm
Specifications / All features
-
Brand:
KNIPEX
-
03064783
-
EAN:
4003773079675
-
Supplier number:
KNIPEX 13 42 165
- For min. cable cross-section
- 0,75 mm²
- With crimping function
- No
- For max. cable cross-section
- 2,5 mm²
- Vde approved
- No
- Adjustment type
- Fixed settings
- Length
- 165 mm
- With cutting function
- Yes
- With automatic stripping function
- No
- Max. cable diameter
- 13 mm
- Min. cable diameter
- 8 mm
- Rohs compliance
- irrelevant
- Handle
- with comfort handles
- Cutting capacities semi-hard wire (diameter)
- Ø 3.2 mm
- Cutting capacities soft wire (diameter)
- Ø 2.2 mm
- Stripping values (diameter)
- 8 - 13 mm
- Reach compliance
- does not contain SVHC
- Cup
- polished
- Weight
- 176 g
- Tang
- black atramentized
