Product description

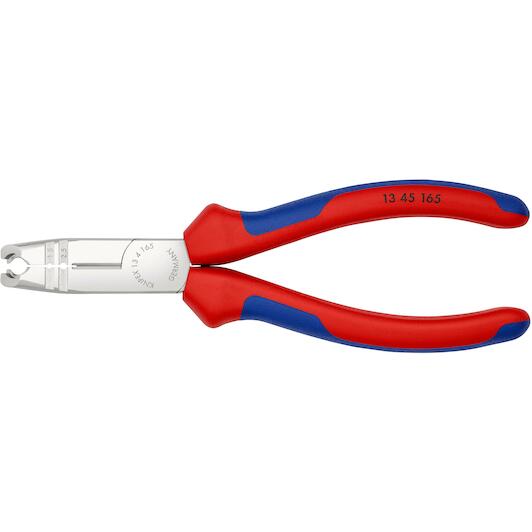

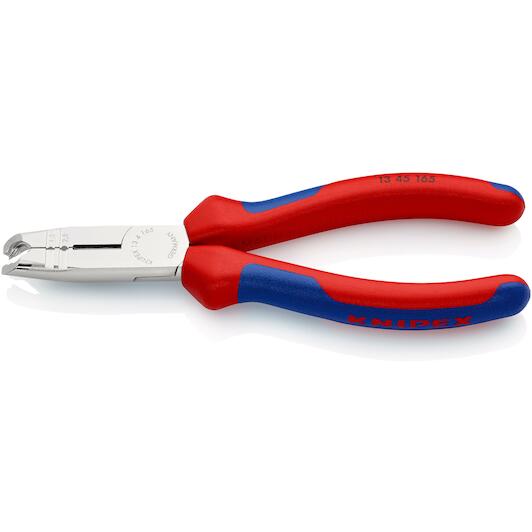

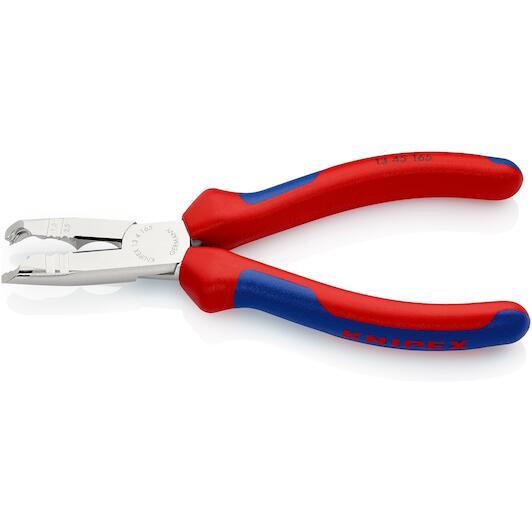

- KNIPEX 13 45 165 Stripping Pliers with multi-component grips chrome-plated 165 mm
- Multifunctional - cutting and stripping with one pair of pliers
- For time-saving stripping of all round sheathed and damp-proof installation cables (e.g. NYM cable)

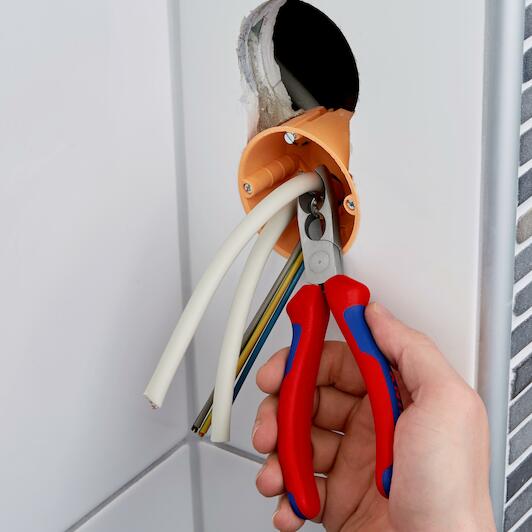

- Simplified access especially into deep mounted junction boxes thanks to slim head design and optimally angled cable sheath cutter
- Strip cables easily and without damage thanks to circular cutting edge with depth limiter
- 30 % lighter than comparable pliers
- All cutters additionally induction-hardened to approx. 61 HRC for high wear resistance
- Suitable for universal use: precision wire stripping holes for conductors from 1.5 and 2.5 mm²
- With side cutters for cutting and trimming conductors, wires, small screws and nails
Key features according to our expert
-
For min. cable cross-section: 0,75 mm²
-
With crimping function: No
-
For max. cable cross-section: 2,5 mm²
-
VDE approved: No
-
Adjustment type: Fixed settings
-
Length: 165 mm
-
With cutting function: Yes
-
With automatic stripping function: No
-
Max. cable diameter: 13 mm
-
Min. cable diameter: 8 mm
Specifications / All features
-
Brand:
KNIPEX
-
02805435
-
EAN:
4003773079682
-
Supplier number:
KNIPEX 13 45 165
- For min. cable cross-section
- 0,75 mm²
- With crimping function
- No
- For max. cable cross-section
- 2,5 mm²
- Vde approved
- No
- Adjustment type
- Fixed settings
- Length
- 165 mm
- With cutting function
- Yes
- With automatic stripping function
- No
- Max. cable diameter
- 13 mm
- Min. cable diameter
- 8 mm
- Rohs compliance
- irrelevant
- Handle
- with multi-component handle
- Cutting capacities semi-hard wire (diameter)
- Ø 3.2 mm
- Cutting capacities soft wire (diameter)
- Ø 2.2 mm
- Stripping values (diameter)
- 8 - 13 mm
- Stripping capacities square millimetres
- 0.75 - 1.5 mm² / 2.5 mm²
- Reach compliance
- does not contain SVHC
- Cup
- chromed
- Weight
- 176 g
- Dimensions
- 165 x 57 x 20 mm
- Tang
- chromed
