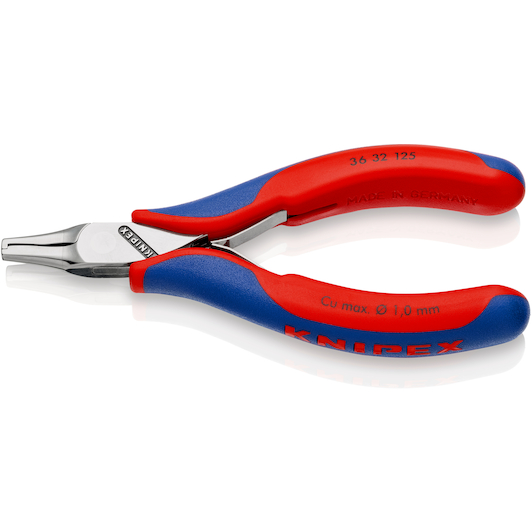

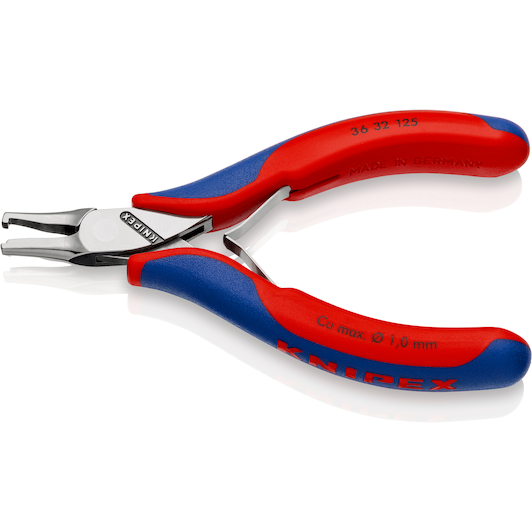

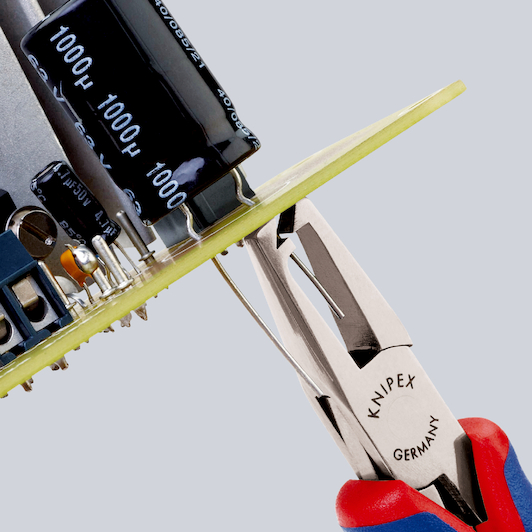

Product description For bending and cutting wire ends on components Robust, heavy-duty construction with precise clearance-free hinge Side corners carefully rounded off: no sharp edges that could damage the material Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger Even deflection for a better working experience Smoothly ground gripping surfaces; edges carefully deburred Low-friction double spring for smooth and even opening The mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the gear circuit due to flying chrome shavings For flattening and cutting to 1.6 mm length below the PCB
Key features according to our expert
Length: 125 mm
Pliers type: Assembly pliers
Specifications / All features
Brand:
KNIPEX
41190524
EAN:
4003773016885
Supplier number:
KNIPEX 36 32 125
Show more features
Length
125 mm
Pliers type
Assembly pliers
Handle
with multi-component handle
Handle size
7.5 mm
Cutting capacities soft wire (diameter)
Ø 1.0 mm
Reach compliance
does not contain SVHC

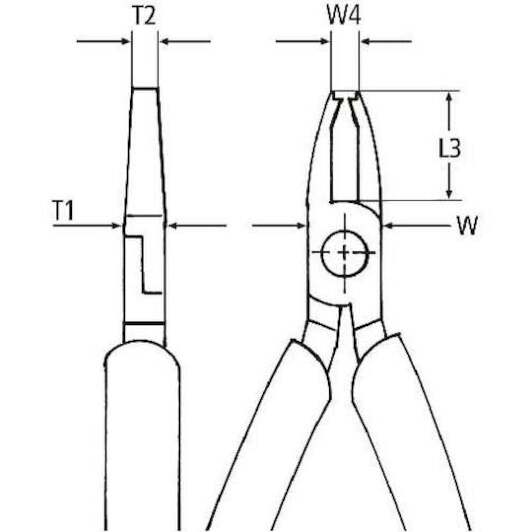

Jaw thickness (hinge) (t1)
7.0 mm
Head width (w3)
11.0 mm
Rohs compliance
irrelevant
Tip thickness (w4)
3.0 mm
Cup
mirror-polished
Weight
70 g
Use
shorten wire 1.6 mm and pinch together
Dimensions
125 x 63 x 17 mm
Jaw length (l3)
18.0 mm
