What applications is the Knipex 77 22 115 intended for?

It is designed for fine cutting work in electronics and precision engineering, such as trimming components on circuit boards.

What are the cutting capacities of these diagonal cutters?

It cuts soft wire from 0.3 to 1.3 mm and medium-hard wire up to 1.0 mm. It is not suitable for hard wire or piano wire.

Does this tool provide a flush cut?

Yes, the cutting edges without bevel allow completely flush, neat cutting.

What is the benefit of the box joint design?

The zero-backlash box joint prevents tilting, ensuring smooth, precise action and a long service life.

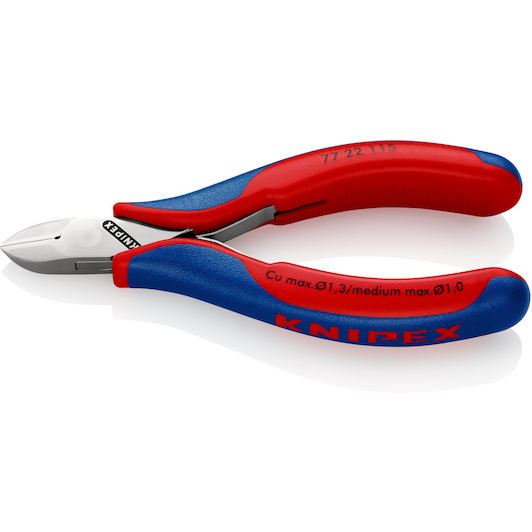

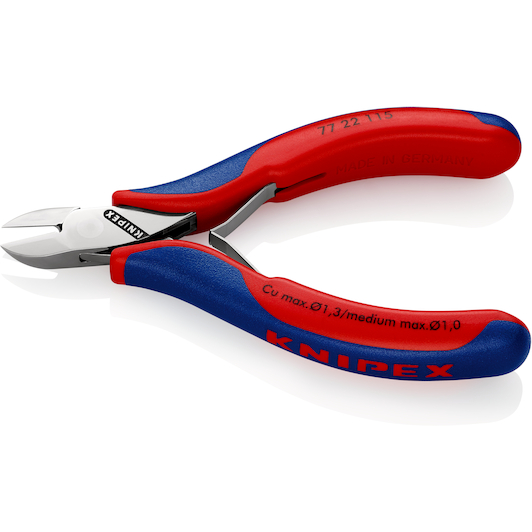

KNIPEX 77 22 115 electronics diagonal cutters with multi-component grips 115 mm

Name: KNIPEX 77 22 115 electronics diagonal cutters with multi-component grips 115 mm
Brand: KNIPEX
SKU: 41190800
Price: 37.8 EUR
Availability: InStock

Supplier number: KNIPEX 77 22 115 | EAN 4003773043782

37.80 tax incl.

€31.24 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Precision cutting for delicate electronics

Practical benefits

Clean and flush cutting: You cut soft wires completely flush on printed circuit boards without damaging sensitive adjacent electronic parts.
Sturdy zero-backlash box joint: The robust Knipex design maintains permanently precise alignment and smooth operation across demanding repetitive tasks.
Comfortable and controlled grip: You work fatigue-free thanks to ergonomic multi-component handles paired with a low-friction double opening spring.

In a nutshell

The right choise for

With the Knipex 77 22 115 electronics diagonal cutters, you handle precision cutting tasks in electronics and fine mechanics with complete accuracy. The bevel-free cutting edges deliver a smooth, flush cut on soft wire from 0.3 to 1.3 mm and medium-hard wire up to 1.0 mm, making it ideal for trimming component leads on printed circuit boards without damaging adjacent parts. Its zero-backlash box joint ensures stable blade alignment and prevents tilting during repetitive cuts. Combined with ergonomic multi-component grips and a low-friction double spring, you maintain full control and work comfortably without hand fatigue.

Product information FAQ

€37.80

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Multicomponent
Length: 115 mm

Product description

Robust, stronger load-bearing construction with backlash-free through-hinge
Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger
Low force requirements due to very high leverage
Load-optimised design for a more direct working feel
Low-friction double spring for smooth and even opening
The mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the gear circuit due to flying chrome shavings
Cutting edges additionally laser-hardened, cutting hardness approx. 62 HRC
Round head without bevel

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Multicomponent
Length: 115 mm
Rohs compliance: irrelevant

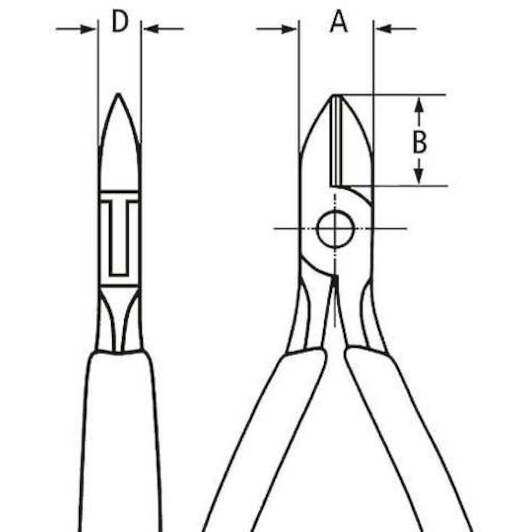

Blade length mm (c): 0,0
Handle: with multi-component handle
Cutting capacities semi-hard wire (diameter): Ø 1.0 mm
Reach compliance: does not contain SVHC
Jaw length (b): 14 mm
Cutting capacities piano wire (diameter): Ø 0,0
Weight: 70 g
Cup: mirror-polished
Head width (a): 11 mm

Brand KNIPEX
41190800
EAN 4003773043782
Supplier number KNIPEX 77 22 115

Frequently asked questions about this product

Answered by specialists

What applications is the Knipex 77 22 115 intended for?: It is designed for fine cutting work in electronics and precision engineering, such as trimming components on circuit boards.
What are the cutting capacities of these diagonal cutters?: It cuts soft wire from 0.3 to 1.3 mm and medium-hard wire up to 1.0 mm. It is not suitable for hard wire or piano wire.
Does this tool provide a flush cut?: Yes, the cutting edges without bevel allow completely flush, neat cutting.
What is the benefit of the box joint design?: The zero-backlash box joint prevents tilting, ensuring smooth, precise action and a long service life.
