What applications is this diagonal cutter intended for?

This electronics diagonal cutter is designed for precision cutting tasks in electronics and fine mechanics, such as on circuit boards.

What is the benefit of the box joint?

The zero-backlash box joint guides both handles internally, preventing twisting and ensuring precise, durable cutting performance.

How does the tool open during repetitive cutting?

A low-friction double spring ensures smooth, gentle, and consistent opening of the pliers.

Is this tool non-sparking or insulated for 1000V?

No, this plier is neither non-sparking nor insulated for 1000V live-line work.

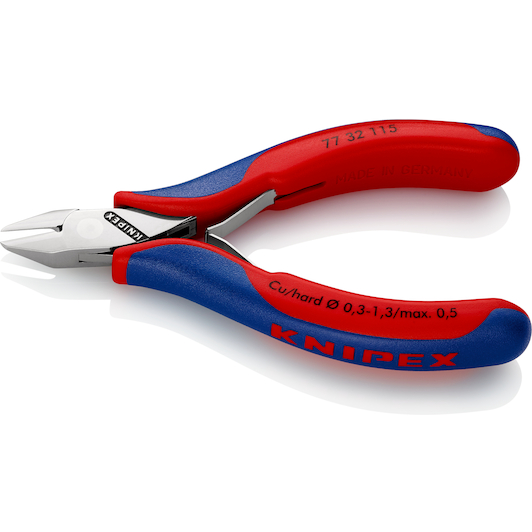

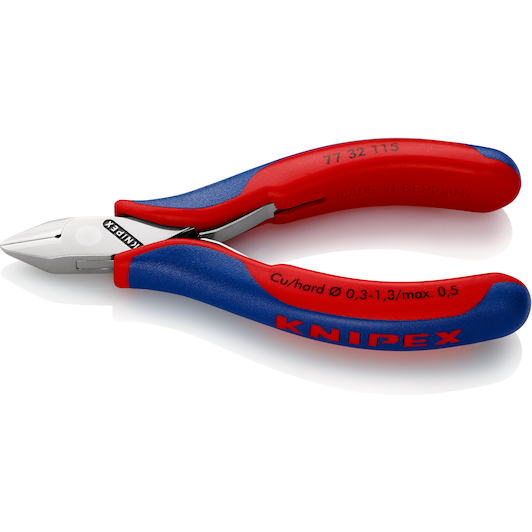

KNIPEX 77 32 115 electronics diagonal cutters with multi-component grips 115 mm

Name: KNIPEX 77 32 115 electronics diagonal cutters with multi-component grips 115 mm
Brand: KNIPEX
SKU: 41190806
Price: 41.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 77 32 115 | EAN 4003773044307

Recommended Retail Price €61.11

41.80 tax incl.

€34.54 excl. VAT (incl. all environmental contributions)

On order: delivered from 30/10/2026

Ordered before 20:00 - delivered as of 30/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Fine electronics cutting by Knipex

Practical benefits

Zero backlash joint action: The sturdy box joint provides precise alignment so you cut delicate wire components with complete control.
Smooth and gentle opening: The low-friction double spring opens the handles effortlessly to reduce hand fatigue across repetitive jobs.
Reliable circuit safe finish: The mirror-polished head prevents peeling plating particles, protecting sensitive electronic boards from short circuits.

In a nutshell

The right choise for

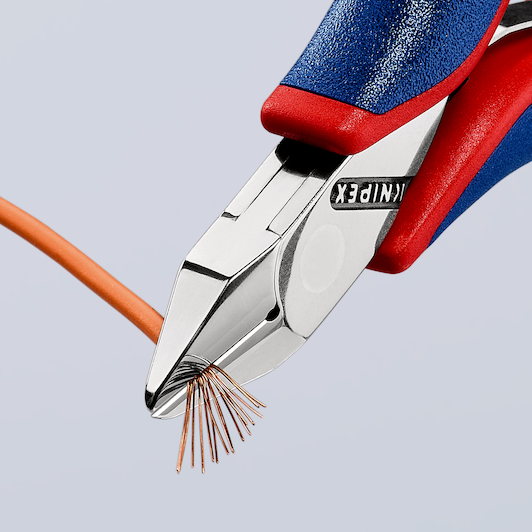

With the Knipex 77 32 115 electronics diagonal cutter, you tackle delicate cutting tasks on circuit boards and fine mechanical assemblies with complete control. The sturdy box joint provides precise, zero-backlash guidance to prevent twisting and deliver clean cuts every time. a low-friction double spring gently opens the handles after each cut, noticeably reducing hand fatigue during repetitive work. Furthermore, the mirror-polished head prevents peeling chrome flakes, keeping sensitive circuits safe from short circuits. Built with a compact 115 mm length and ergonomic multi-component grips, this tool reliably cuts soft wire from 0.3 to 1.3 mm, medium-hard wire up to 1.0 mm, and hard wire up to 0.5 mm.

Product information FAQ

€41.80

tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Multicomponent
Length: 115 mm

Product description

Robust, stronger load-bearing construction with backlash-free through-hinge
Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger
Low force requirements due to very high leverage
Load-optimised design for a more direct working feel
Low-friction double spring for smooth and even opening
The mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the gear circuit due to flying chrome shavings
Cutting edges additionally laser-hardened, cutting hardness approx. 62 HRC

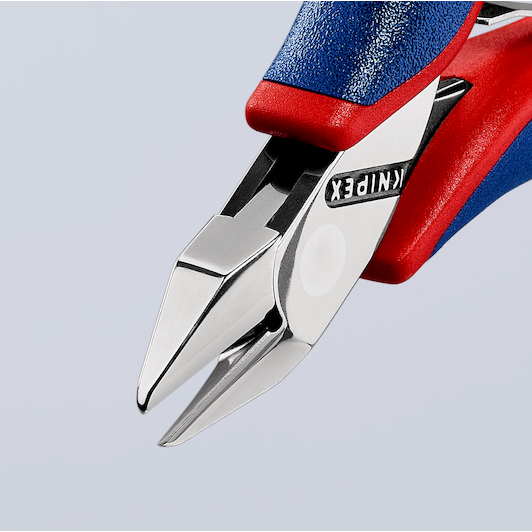

Pointed head with small bevel

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Multicomponent
Length: 115 mm
Rohs compliance: irrelevant
Blade length mm (c): 0,0
Handle: with multi-component handle
Cutting capacities semi-hard wire (diameter): Ø 1.0 mm
Reach compliance: does not contain SVHC

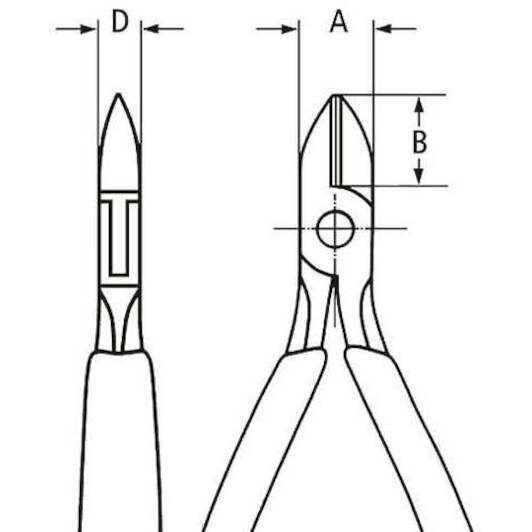

Jaw length (b): 14 mm
Cutting capacities piano wire (diameter): Ø 0,0
Weight: 65 g
Jaw thickness (hinge) (d): 7.5 mm
Cup: mirror-polished
Dimensions: 115 x 66 x 17 mm
Standard: DIN ISO 9654
Head width (a): 11 mm

Brand KNIPEX
41190806
EAN 4003773044307
Supplier number KNIPEX 77 32 115

Frequently asked questions about this product

Answered by specialists

What applications is this diagonal cutter intended for?: This electronics diagonal cutter is designed for precision cutting tasks in electronics and fine mechanics, such as on circuit boards.
What are the maximum cutting capacities?: It cuts soft wire from 0.3 to 1.3 mm, medium-hard wire up to 1.0 mm, and hard wire up to 0.5 mm.
What is the benefit of the box joint?: The zero-backlash box joint guides both handles internally, preventing twisting and ensuring precise, durable cutting performance.
How does the tool open during repetitive cutting?: A low-friction double spring ensures smooth, gentle, and consistent opening of the pliers.
Is this tool non-sparking or insulated for 1000V?: No, this plier is neither non-sparking nor insulated for 1000V live-line work.
