What is this crimping die used for?

It is designed for precise crimping of D-Sub, HD20, and HDE connectors.

What capacity range does the Knipex 97 49 24 cover?

It handles wire sizes from 0.03 to 0.56 mm² (32 to 20 AWG).

Which crimping tools are compatible with this die?

It fits Knipex system crimping pliers from the 97 43 XX series, such as 97 43 200.

How many crimping positions does the die have?

It features 3 crimping positions and creates a professional F-crimp profile.

Is there an alignment aid available for this die?

Yes, the optional 97 49 93 locator ensures precise positioning during the crimping process.

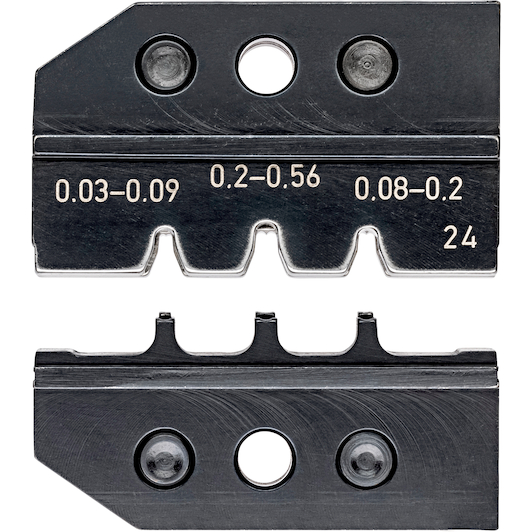

KNIPEX 97 49 24 crimping dies for D-Sub plugs

Name: KNIPEX 97 49 24 crimping dies for D-Sub plugs
Brand: KNIPEX
SKU: 41191042
Price: 146.4 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 49 24 | EAN 4003773030911

Recommended Retail Price €205.94

146.40 tax incl.

€120.99 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Precise micro connections with Knipex

Practical benefits

Optimized for D-Sub plugs: You achieve accurate crimps on D-Sub, HD 20, and HDE connectors across a capacity range of 0.03 to 0.56 mm².
Consistently reliable electrical contacts: The precision-machined crimping nests ensure you produce secure, deformation-free terminations on sensitive micro pins every time.
Fast and simple interchangeability: You can swiftly install this die into your compatible crimp system pliers to transition between wiring tasks without delay.

In a nutshell

The right choise for

With the Knipex 97 49 24 crimping die, you achieve highly dependable connections on sensitive miniature plugs. Tailored for D-Sub, hd 20, and hde connectors, it accommodates wire sizes from 0.03 to 0.56 mm² (AWG 32–20) across 3 crimping positions. The accurate F-crimp profile prevents pin deformation and guarantees consistent conductivity on very fine wires. You can easily insert this die into your Knipex 97 43 XX series system crimping pliers to terminate custom data lines, assemble serial cables, or wire industrial control panels with full confidence.

Product information Accessories FAQ

€146.40

tax incl.

Key features according to our expert

Accessory/Part type: Crimp jaw
Shrinkage capacity: 0,03 - 0,56 mm²

Product description

Die optional erhältliche Kontaktaufnahme 97 49 93 erleichtert die Führung der Kontakte beim Crimpvorgang
Application: D-Sub, HD 20, HDE connector 0.03 - 0.56 mm

Documents

⤓ Product sheet PDF

All Features

Accessory/part type: Crimp jaw
Shrinkage capacity: 0,03 - 0,56 mm²
Dimensions: 50 x 12 mm
Use: D-Sub
Weight: 41 g
Rohs compliance: irrelevant
Reach compliance: does not contain SVHC
Number of crimp profiles: 3

Brand KNIPEX
41191042
EAN 4003773030911
Supplier number KNIPEX 97 49 24

Accessories

KNIPEX 97 49 93 Positioning aid for 97 49 24 (D-Sub plugs)

Recommended Retail Price €159.96

95.80

€79.17 excl. VAT

Delivery time average 10 days.

Frequently asked questions about this product

Answered by specialists

What is this crimping die used for?: It is designed for precise crimping of D-Sub, HD20, and HDE connectors.
What capacity range does the Knipex 97 49 24 cover?: It handles wire sizes from 0.03 to 0.56 mm² (32 to 20 AWG).
Which crimping tools are compatible with this die?: It fits Knipex system crimping pliers from the 97 43 XX series, such as 97 43 200.
How many crimping positions does the die have?: It features 3 crimping positions and creates a professional F-crimp profile.
Is there an alignment aid available for this die?: Yes, the optional 97 49 93 locator ensures precise positioning during the crimping process.
